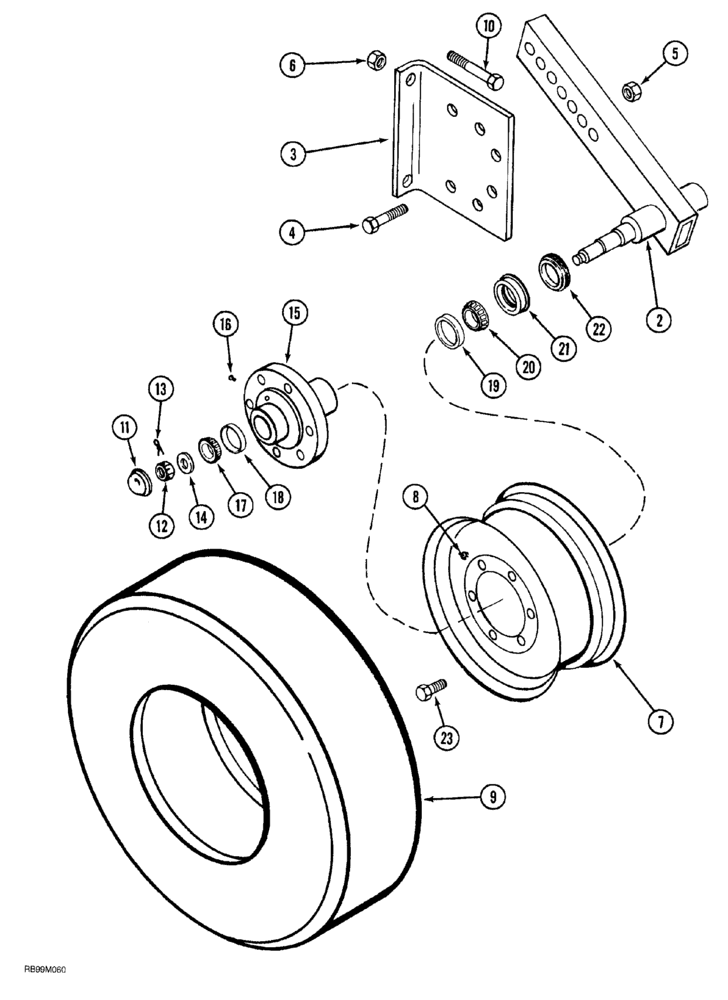

Запчасти Case IH 1820 (09-029A) - CARRYING WHEELS

2

187790A1

CENTER AXLE

carrying wheel

1шт.

3

322171A1

ANGLE

carrying wheel

2шт.

4

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

hex, 3/4" NC x 4"

2шт.

5

231-42412

NUT,3/4"-10, GB

hex, self locking, 3/4" NC

2шт.

6

230-42410

LOCK NUT,5/8"-11, GA

5/8"

2шт.

7

T53527

WHEEL

381 mm (15") x 127 mm (5")

1шт.

8

810769C1

VALVE

inflation

1шт.

9

REF

INSTRUCTION

TIRE

1шт.

10

413-10136

BOLT,Hex, 5/8" - 11 x 8-1/2", Gr 5

hex, 5/8" NC x 8-1/2"

2шт.

11

602959R1

PLUG

CAP hub

1шт.

12

427640

SLOTTED NUT,3/4"-16, G5

hex, 3/4" NF

1шт.

13

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

14

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

flat, special, 25/32" x 1/4" x 1/8"

1шт.

15

810087C2

HUB

wheel, six bolt mount

1шт.

16

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

17

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

tapered roller, 3/4" ID

1шт.

17

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

18

651814R1

BEARING CUP

tapered roller, 1-25/32" OD

1шт.

19

651817R1

BEARING CUP

CUP tapered roller, 2-21/64" OD

1шт.

19

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

20

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

tapered roller, 1-1/4" ID

1шт.

21

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

oil

1шт.

22

472222R1

SLEEVE

oil seal

1шт.

23

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

hex conical, 1/2" NF x 1-5/32"

6шт.
