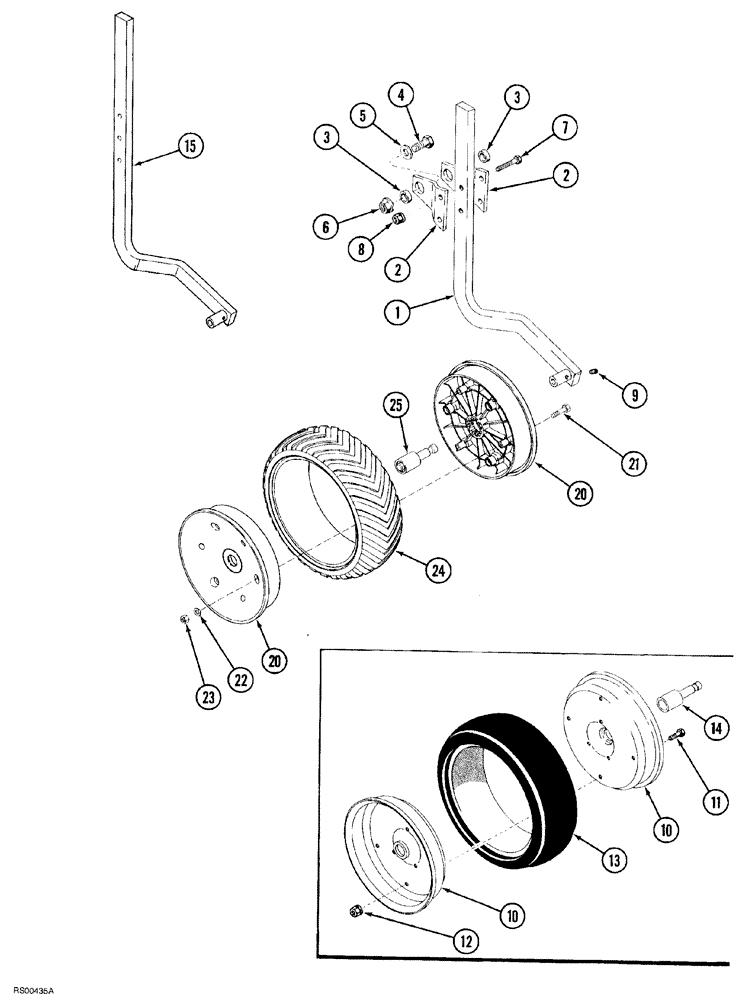

Запчасти Case IH 1820 (09-028) - QUICK ADJUST GAUGE WHEEL

1

1547042C1

ARM

gauge wheel, used with Vibra Shank and Vibra Till

1шт.

1

1547043C2

ARM

gauge wheel, used with Vibra Tine, not shown

1шт.

2

1547044C1

BRACKET

mounting arm

2шт.

3

1546946C1

BUSHING

pivot, mounting arm

2шт.

4

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

5

495-11081

WASHER,3/4", SAE

2шт.

6

231-41412

NUT,3/4"-10, GB

hex, flange, 3/4" NC

2шт.

7

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

8

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

9

483-3386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

hex socket, 3/8" x 7/16"

1шт.

1279445C91

WHEEL ASSY.

gauge, Includes: Ref. 10 - 14

1шт.

10

526768R1

WHEEL

RIM gauge

2шт.

11

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

7шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

13

516492R1

TYRE/TIRE

gauge wheel, semipneumatic, 4" x 12"

1шт.

14

526769R91

BALL BEARING,30mm OD x 98.04mm L

ball

1шт.

15

187191A1

ARM ASSY.

gauge wheel, used with Vibra Tine for bed and ridge till

1шт.

220391A1

WHEEL ASSY.

gauge, chevron tread, Includes: Ref. 20 - 25

1шт.

20

220389A1

WHEEL

RIM gauge

2шт.

21

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

7шт.

22

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

7шт.

23

231-4114

LOCK NUT,1/4"-20, GB

hex, self-locking, 1/4" NC

7шт.

24

220390A1

TYRE/TIRE

gauge wheel, chevron tread, 4" x 12"

1шт.

25

526769R91

BALL BEARING,30mm OD x 98.04mm L

ball

1шт.
