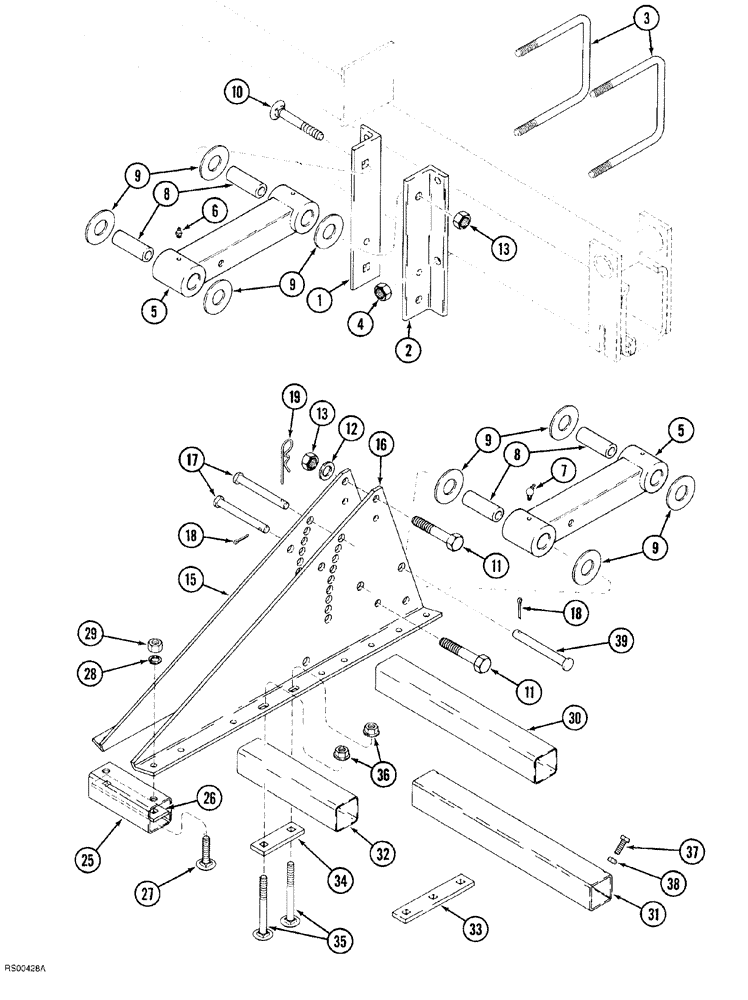

Запчасти Case IH 1820 (09-014) - PARALLEL LINKAGE

1

144869C2

ANGLE

head bracket, left-hand

1шт.

2

144870C2

ANGLE

head bracket, right-hand

1шт.

3

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5/8" NC, 5" x 7", frame

2шт.

3

1250813C1

U-BOLT

5/8" NC, 7" x 7", frame

2шт.

4

425-1010

NUT,5/8"-11, G5

4шт.

5

231782A1

LINK

parallel

2шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

7

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4"-28 special taper x 13/16", 45°

2шт.

8

231785A1

BUSHING

parallel link

4шт.

9

137715A2

WASHER

wear, plastic

8шт.

10

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

carriage, 5/8" NC x 5"

2шт.

11

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

2шт.

12

495-21069

WASHER,5/8"

flat, 11/16" x 1-3/4" x 9/64"

2шт.

13

231-42410

LOCK NUT,5/8"-11, GB

hex, 5/8" NC

4шт.

15

1547028C4

PLATE

linkage, left-hand

1шт.

16

1547029C4

PLATE

linkage, right-hand

1шт.

17

1547056C1

PIN

headed, 5/8" x 4-1/2"

2шт.

18

432-1624

COTTER PIN,1/4" x 1 1/2"

2шт.

19

1978738C1

HAIR PIN COTTER

3/16"

1шт.

25

141308C1

TUBE,171 mm Length

171 mm long

1шт.

26

141309C1

BAR

rear tube

1шт.

27

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2" NC x 1-1/2"

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

29

425-108

NUT,1/2" - 13, Gr 5

2шт.

30

100294C2

TUBE,327 mm Length

mounting, 327 mm long, if used

1шт.

30

100295C2

TUBE,449 mm Length

mounting, 449 mm long, if used

1шт.

31

100954A2

TUBE,508 mm Length

center shield, 508 mm long, if used

1шт.

31

100955A2

TUBE,380 mm Length

center shield, 380 mm long, if used

1шт.

32

1547053C1

TUBE,280 mm Length

mounting, 280 mm long, if used

1шт.

33

1547073C1

CLIP

STRAP tube mounting, if used

2шт.

34

1337960C1

STRAP

tube mounting

4шт.

35

433-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 5

1/2" NC x 4"

1шт.

36

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

37

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

38

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

39

439-51272

HEADED PIN,3/4" x 4 1/2", G5

1шт.

40

183786A1

LARGE PLATE

PLATE, LARGE bottom, if used, not shown, similar to Ref. 39 on Figure 09-016

1шт.
