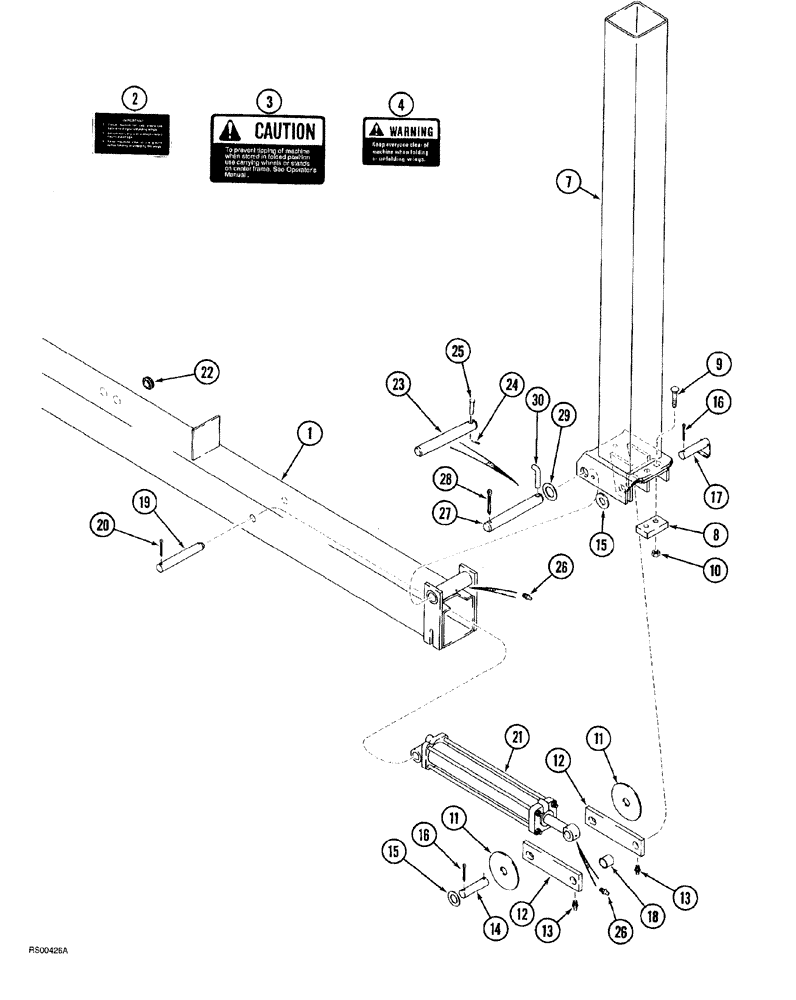

Запчасти Case IH 1820 (09-010) - FRAME - FOLDING, 8 ROW WIDE, 12 ROW NARROW, 12 ROW WIDE AND 16 ROW NARROW (Jun 14 2010 7:53:00.2559 AM)

1

104199A1

FRAME ASSY

center, 8 row wide, Includes: Ref. 2 - 4

1шт.

On these units listed the hitch is welded to the center sections

1шт.

1

104201A1

FRAME ASSY

center, 12 row narrow, Includes: Ref. 2 - 4

1шт.

On these units listed the hitch is welded to the center sections

1шт.

1

104203A1

FRAME ASSY

center, 12 row wide and 16 row narrow, Includes: Ref. 2 - 4

1шт.

On these units listed the hitch is welded to the center sections

1шт.

2

1250723C1

DECAL

important, cab clearance

1шт.

3

1250839C1

DECAL

caution, to prevent tipping

1шт.

4

59051C2

PRODUCT GRAPHIC

DECAL warning, keep everyone clear of machine when folding or unfolding wings

1шт.

7

111417A1

ARM

FRAME wing, 8 row wide

2шт.

7

111418A1

ARM

FRAME wing, 12 row narrow

2шт.

7

111419A1

ARM

FRAME wing, 12 row wide and 16 row narrow

2шт.

8

1344857C1

BLOCK

stop

2шт.

9

433-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 5

carriage, 5/8" NC x 3"

4шт.

10

231-42110

LOCK NUT,Hex, 5/8"-11, GB

4шт.

11

1334194C1

ROLLER

cylinder support

4шт.

12

1980724C1

BAR

wing link

4шт.

13

219-17

LUBE NIPPLE,3/16" NPTF

4шт.

14

1985949C1

PIN,31.7mm OD x 124mm L

cylinder, to wing link

2шт.

15

495-81203

WASHER,1 9/32" x 2" x .120"

flat, 1-9/32" x 2" x 1/8"

8шт.

16

432-2032

COTTER PIN,5/16" x 2"

5/16" x 2"

6шт.

17

1969120C1

PIN

wing link, to wing frame

2шт.

18

1985951C1

SPACER

wing link

2шт.

19

145174C1

PIN,31.75mm OD x 228mm L

cylinder, base end

2шт.

20

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

4шт.

21

1286369C91

HYDRAULIC CYLINDER,38.02mm Rod, 406.4mm Stroke

89 mm (3-1/2") ID x 406 mm (16") stroke, 8 row wide and 12 row narrow, see Figure 08-006

2шт.

21

1986595C1

CYLINDER,Double Acting, 38.1mm Rod, 381mm Stroke

ASSEMBLY, 102 mm (4") ID x 406 mm (16") stroke, 12 row wide and 16 row narrow, see Figure 08-008

2шт.

22

100247C1

GROMMET

center frame

4шт.

23

1264497C1

PIN,38.1mm OD x 312mm L

hinge, 12 row wide and 16 row narrow

2шт.

24

432-1216

COTTER PIN,3/16" x 1"

2шт.

25

439-5844

HEADED PIN,1/2" x 2 3/4", G5

headed, 1/2" x 2-3/4"

2шт.

26

219-6

LUBE NIPPLE,1/4" - 28 NPTF

straight, 1/4"-28 taper x 9/16"

4шт.

27

144892C1

PIN,38.1mm OD x 290.5mm L

frame hinge, 8 row wide and 12 row narrow

2шт.

28

432-3232

COTTER PIN,1/2" x 2"

1/2" x 2"

2шт.

29

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

flat, 1-17/32" x 2-1/4" x 3/64"

1шт.

30

149507C1

BAR

PIN pivot lock, 8 row wide and 12 row narrow

2шт.
