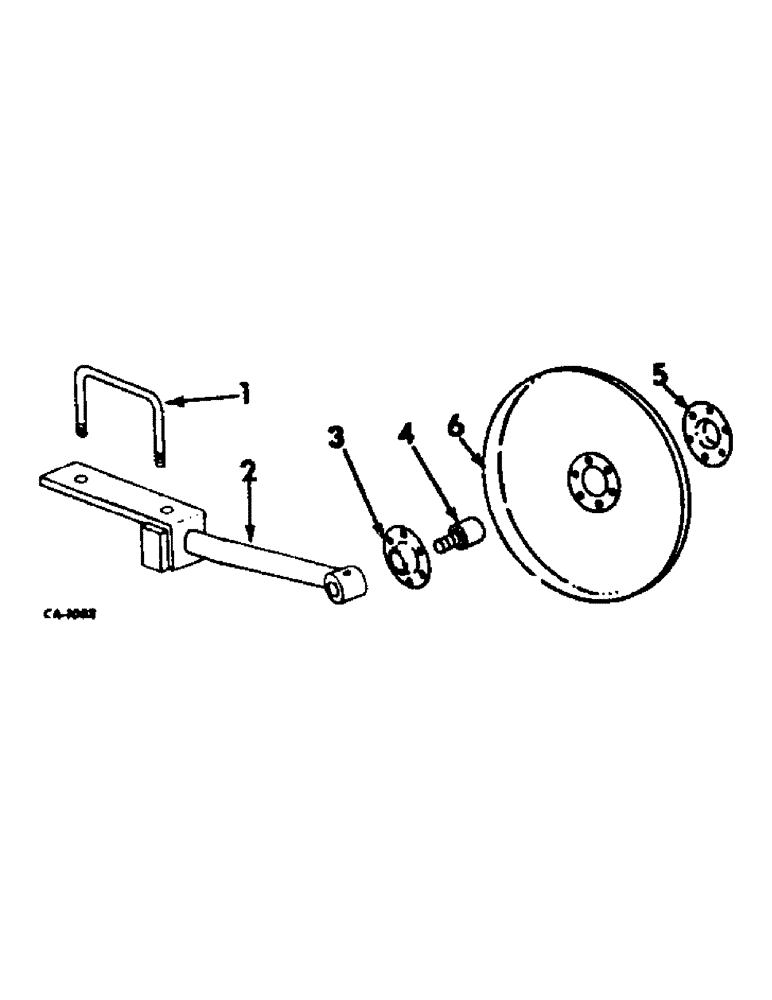

Запчасти Case IH 170 (AS-06) - GUIDE WHEELS

1

540241R1

BOLT (SPREADER),U, 3/4" - 10 x 5.5"

U-BOLT, 8 for 6 row, 12 for 8 row

1шт.

280954

NUT,3/4"-10, G5

2шт.

2

542603R1

SUPPORT ASSY.

STANDARD ASSY, guide wheel LH, 4 for 6 row, 6 for 8 row

1шт.

2

542604R1

SUPPORT ASSY.

STANDARD ASSY, guide wheel RH, 4 for 6 row, 6 for 8 row

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt set, 1 per standard

1шт.

3

468009R1

RETAINER

HOUSING, bearing, open, 8 for 6 row, 12 for 8 row

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

8шт.

120376

NUT,5/16"-18, G5

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

4

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball, 8 for 6 row, 12 for 8 row

1шт.

5

487081R1

COVER

HOUSING, bearing, closed, 8 for 6 row, 12 for 8 row

1шт.

6

468007R2

WHEEL

guide, 8 for 6 row, 12 for 8 row

1шт.
