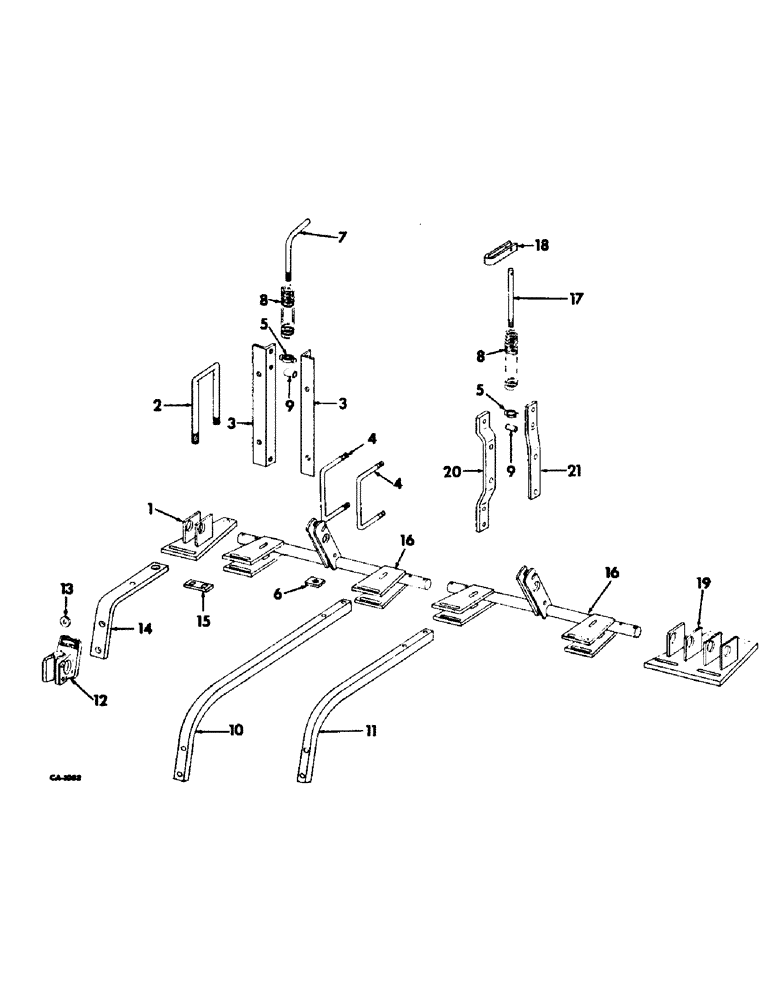

Запчасти Case IH 170 (AS-03) - GANGS

1

542608R1

BRACKET ASSY, rockshaft, 12 used 6 row wide, 10 used 6 row narrow and 14 used 8 row narrow

1шт.

2

542624R1

BOLT,U, 3/4" - 10 x 8.4"

U-BOLT, 12 used 6 row wide, 10 used 6 row narrow and 14 used 8 row narrow

1шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

3

542625R1

ANGLE

adj crank LH, 6 used 6 row wide, 4 used 6 row narrow and 6 used 8 row narrow

1шт.

3

542626R1

ANGLE

adj crank RH, 6 used 6 row wide, 4 used 6 row narrow and 6 used 8 row narrow

1шт.

4

542627R1

BOLT,U, 1/2" - 13 x 4.8"

U-BOLT, 12 used 6 row wide, 8 used 6 row narrow and 12 used 8 row narrow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

5

468022R1

TRUNNION

adj crank, 1 per row

1шт.

6

468024R1

PIVOT

SWIVEL, crank, per row

1шт.

7

542611R1

CRANK

ASSY, adj, 4 used 6 row wide and 6 row narrow, 6 used 8 row narrow

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znd jam

1шт.

8

PO102

SPRING

adj crank, 1 per row

1шт.

9

527211R1

BUSHING

SPACER, 1 per row

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

10

468025R1

ARM

shovel adjusting long, 1 per row

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 znd sq-nk crg

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

11

468026R1

ARM

shovel adjusting short, 1 per row

1шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 znd sq-nk crg

2шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

271727

CAM,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

12

468027R1

BRACKET

standard, 4 per row

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW, 5/8-11 x 3 znd hex-hd cap

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

8шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8 x 2 znd sq-nk crg

2шт.

18722R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/2", Gr 2

BOLT, 5/8 x 2-1/2 znd sq-nk crg

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

13

523011R1

WASHER

serrated, 4 per row

1шт.

14

468028R1

ARM

disk adjusting, 2 per row

1шт.

18720R1

SCREW,Short NK, 5/8"-11 x 2", G2

BOLT, 5/8-11 x 2 znd sq-nk crg

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

15

468029R1

BAR

ANCHOR, disk adjusting arm, 2 per row

1шт.

18721R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 2

BOLT, 5/8 x 2-1/4 znd sq-nk crg

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8 x 1-3/4 znd sq-nk crg

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

16

468016R21

ROCKSHAFT ASSY, shovel arm, 1 per row

1шт.

22442R1

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

2шт.

17

542614R1

CRANK

ROD ASSY, adj crank

2шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z

2шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8-11 znd jam

2шт.

18

542630R1

BRACKET, crank

2шт.

22094R1

PIN

1/4 x 1-3/8 C-Z std-hd

2шт.

137185

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

19

542612R1

BRACKET

ASSY, for 6-row and 8-row narrow

1шт.

20919R1

BOLT,Hex, 3/4" - 10 x 9", Gr 5

SCREW, 3/4-10 x 9 znd hex-hd cap

2шт.

21702R1

BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5

SCREW, 3/4-10 x 8-1/2 znd hex-hd cap

2шт.

21211R1

WASHER

25/32 x 1-1/2 x 7 ga C-Z

2шт.

473244R1

LOCK NUT,3/4"-10, GB

NUT, 3/4-10 two way hex lock

4шт.

20

542628R1

STRAP

long, for 6-row and 8-row narrow

2шт.

21

542629R1

STRAP

short, for 6-row and 8-row narrow

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8 x 2-1/4 znd hex-hd mach

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2-13 x 3 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.
