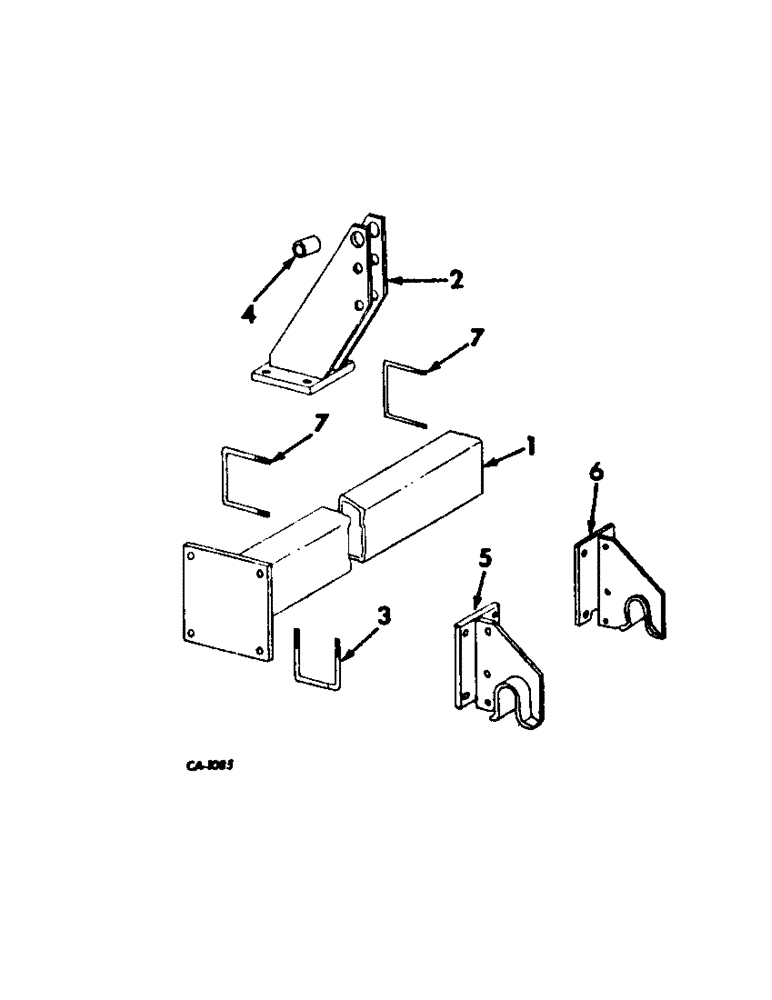

Запчасти Case IH 170 (AS-02) - FRAME

1

542594R1

TUBE ASSY, main frame, for 6-row wide and 8-row narrow

1шт.

1

543033R1

TUBE

main frame, for 6-row narrow

1шт.

2

542596R1

SUPPORT

MAST ASSY

1шт.

271779

STRIP,Hex, 3/4" - 10 x 4", Gr 5

SCREW, 3/4-10 x 4 znd hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

542622R1

BOLT,U, 3/4" - 10 x 7.48"

U-BOLT, for 6-row wide

2шт.

280954

NUT,3/4"-10, G5

4шт.

4

462425R1

SPACER

mast

1шт.

5

542599R1

BRACKET

BARCKET ASSY, hitch LH, for 6-row wide and 8-row narrow

1шт.

6

542600R1

BRACKET

ASSY, hitch RH, for 6-row wide and 8-row narrow

1шт.

7

493467R1

BOLT,3/4" - 10 x 5 1/2", Steel

U-BOLT, 3/4, for 6-row wide and 8-row narrow

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 type 8 znd hex.

8шт.
