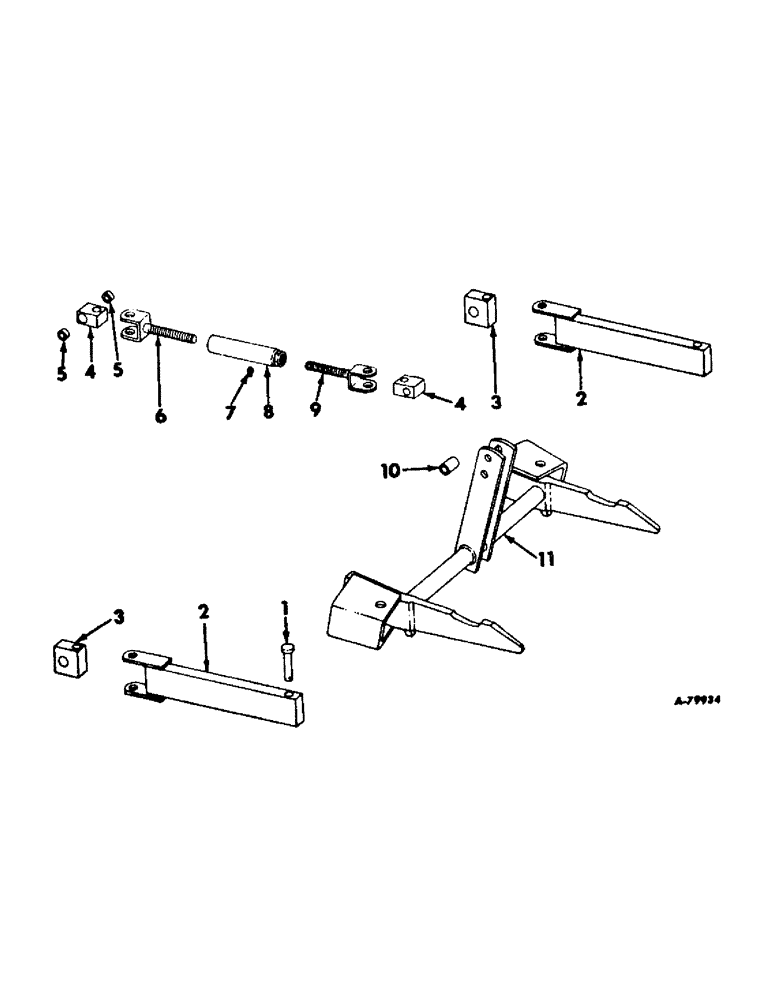

Запчасти Case IH 170 (AS-09) - TWO-POINT FAST HITCH ADAPTER, FOR 6-ROW WIDE AND NARROW

1

477010R1

PIN, lower link front

2шт.

2

477011R91

BAR ASSY, lower link

2шт.

22072R1

PIN, 3/4 x 4-13/16 C-Z std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

3

468046R1

TRUNNION, lower link bar

2шт.

4

468047R1

TRUNNION, turnbuckle

2шт.

21667R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-1/2 znp std-hd

1шт.

22106R1

HEADED PIN,3/4" x 3 3/4"

PIN, 3/4 x 3-3/4 C-Z std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

5

495827R1

SPACER,1" Tube x 1/2"

upper link support

2шт.

12429R1

PIN, 7/16 x 1-3/4 cot.

2шт.

6

477013R91

YOKE ASSY, upper link RH

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 C-Z std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

516773R1

NUT

upper link rod

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF2 str-thd lub

1шт.

8

526904R1

TURNBUCKLE

upper link

1шт.

9

477015R91

YOKE ASSY, upper link LH

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 C-Z std-hd

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

10

462425R1

SPACER

upper link support

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4 x 4-1/4 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

11

477005R91

BEAM ASSY, coupling

1шт.

22088R1

PIN, 3/4 x 4-3/8 C-Z std-hd

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.
