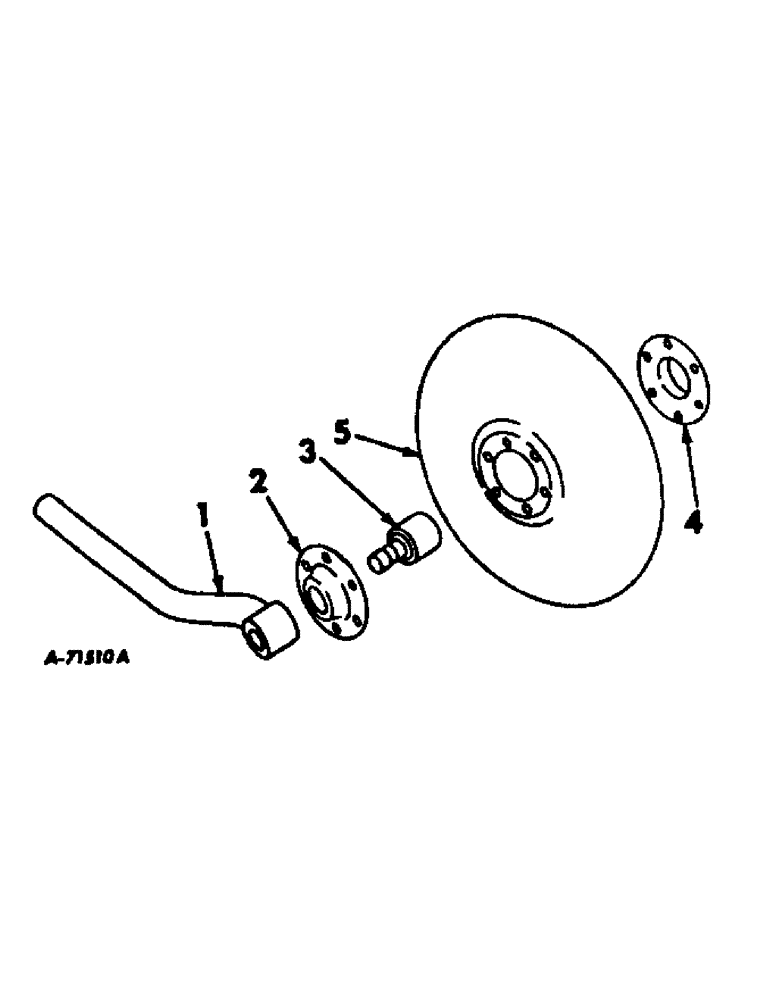

Запчасти Case IH 170 (AS-08) - DISK WEEDER

1

468010R1

SUPPORT ASSY.

STANDARD, disk, 2 per row

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt set

2шт.

2

468009R1

RETAINER

HOUSING, bearing open, 2 per row

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16 x 3/4 znd hex-hd cap

12шт.

120376

NUT,5/16"-18, G5

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

3

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball, 2 per row

1шт.

4

487081R1

COVER

HOUSING, bearing closed, 2 per row

1шт.

5

468011R1

DISC

DISK, 16 inch, 2 per row

1шт.
