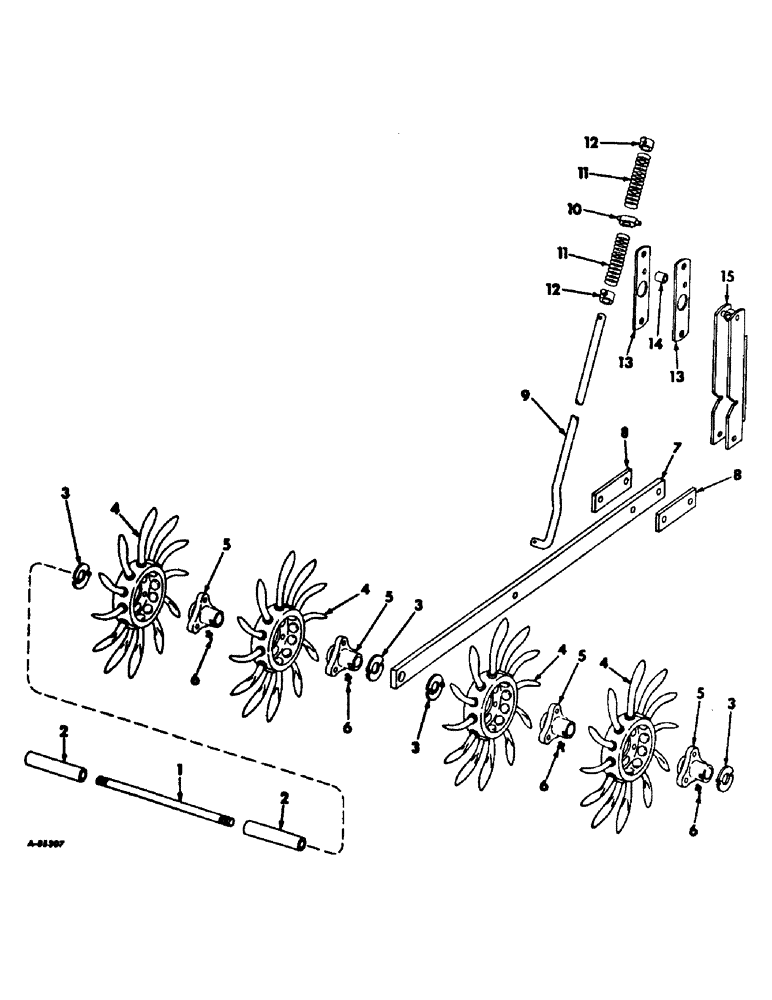

Запчасти Case IH 170 (AS-07) - ROTARY WEEDER ATTACHMENT

1

480299R1

ROD, rotary weeder axle

1шт.

21101R1

WASHER, 25/32 x 2-1/4 x 11 ga C-Z

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

2

480300R1

SPACER, rotary wheel hub

2шт.

22181R1

WASHER, 1-3/32 x 1-3/4 x 16 ga C-Z

2шт.

3

480301R1

WASHER, rotary wheel hub

4шт.

4

522294R11

WHEEL ASSY, rotary 12 T

4шт.

5

522293R1

HUB, rotary wheel

4шт.

19572R1

BOLT, 3/8 x 1-3/8 C-Z hex-hd mach

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

120377

NUT,3/8" - 16, Gr 5

12шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

4шт.

7

480302R1

BAR, main frame short

1шт.

7

480303R1

BAR, main fram long

1шт.

8

480304R1

BAR, main frame attaching

2шт.

9

480305R1

ROD, rotary wheel support

1шт.

21644R1

PIN,1/4" x 1"

Split (Cotter), 1/4" x 1"

2шт.

10

468022R1

TRUNNION

TRUNION, support bar

1шт.

11

PO3A

SPRING

pressure

2шт.

12

516595R11

COLLAR,16.67mm ID x 28.5mm OD x 19mm L

COLLAR ASSY, set

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd cup-pt set

2шт.

13

480306R1

BAR, support

2шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 C-Z hex-hd cap

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 C-Z hex-hd mach

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

14

61851V

SPACER,1/4" Pipe x 3/4"

Support bar 1/4" Pipe x 3/4"

1шт.

15

Not used in this application

1шт.
