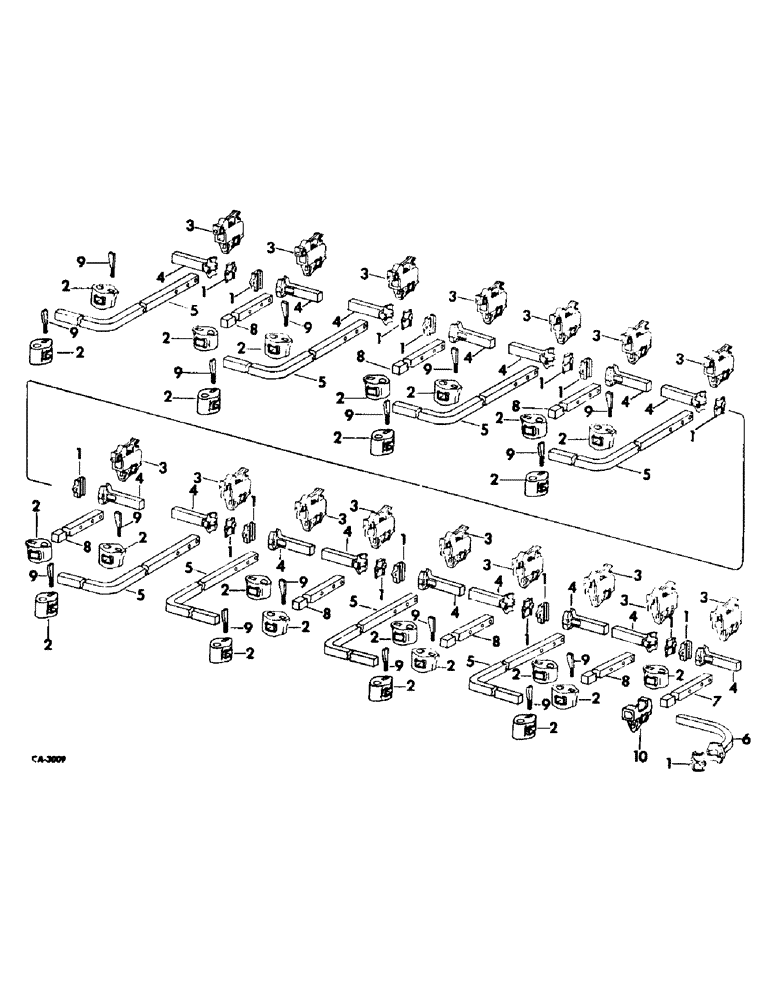

Запчасти Case IH 163 (AQ-07) - SQUARE BARS, EXTENSIONS AND CLAMPS, FOR 6 AND 8 ROW

1

1779BB

CLAMP

CAP, 13 for 6 row, 17 for 8 row

1шт.

2

522557R2

CLAMP

standard, 18 for 6 row, 24 for 8 row

1шт.

3

522558R1

CLAMP, tool bar, 12 for 6 row, 16 for 8 row

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach, 1 per clamp

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach, 1 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 1 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per clamp 1/2"-13, G5

1шт.

4

28236BB

CLAMP

EXTENSION, tool bar 7-3/4 in., 12 for 6 row, 16 for 8 row

1шт.

29822B

BOLT

1/2-13 x 2-3/4 sq-hd mach, 2 per extension

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per extension 1/2"-13, G5

1шт.

5

523380R1

TOOL BAR, bent short, 1 per row

1шт.

6

525818R1

EXTENSION, curved tool bar

1шт.

29822B

BOLT

1/2-13 x 2-3/4 sq-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

7

483565R1

TOOL BAR, straight outer RH

1шт.

8

522566R1

TOOL BAR, straight short, 5 for 6 row, 7 for 8 row

1шт.

9

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 31 for 6 row, 41 for 8-row

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

10

522556R1

CLAMP

tool bar extension

1шт.
