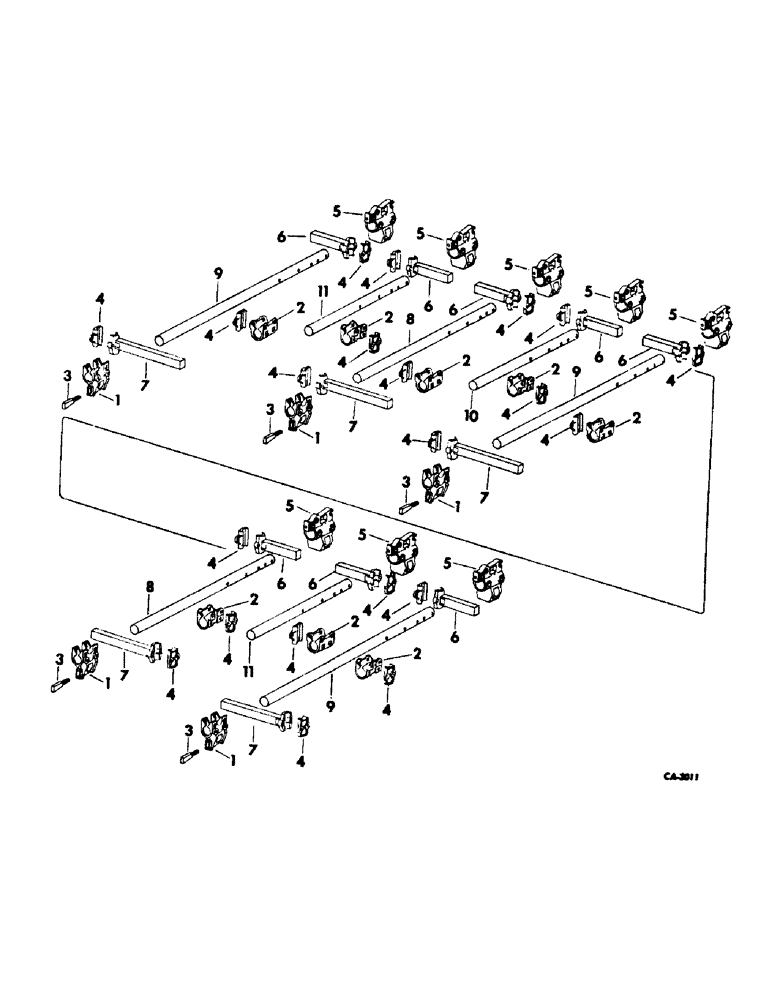

Запчасти Case IH 163 (AQ-06) - ROUND BARS, EXTENSIONS AND CLAMPS, FOR 4-ROW WIDE

1

1846BX

CLAMP

ASSY, tool bar extension

5шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set

10шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2-13 x 2-3/4 C-Z sq-nk crg

10шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

2

1869BX

CLAMP

ASSY, standard

8шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set

8шт.

29821B

BOLT, 1/2-13 x 2-1/2 sq-hd mach

16шт.

18710R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2

BOLT, 1/2-13 x 3 C-Z sq-nk crg

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

32шт.

3

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

4

1779BB

CLAMP

CAP

21шт.

5

522641R1

CLAMP

tool bar attaching

8шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

8шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach

16шт.

120384

WASHER,1/2"

LOCK, 1/2"

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

22217R1

SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set

16шт.

6

28236BB

CLAMP

EXTENSION, tool bar 7-3/4 in.

8шт.

7

524336R1

CLAMP

EXTENSION, tool bar 13 in.

5шт.

29822B

BOLT

1/2-13 x 2-3/4 sq-hd mach

26шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

26шт.

8

523653R3

TOOL BAR, 36 in. long

2шт.

9

524337R2

TOOL BAR, 40-1/4 in. long

3шт.

10

524338R2

TOOL BAR, 29-3/4 in. long

1шт.

11

522646R3

PIPE

TOOL BAR, 25-1/2 in. long

2шт.
