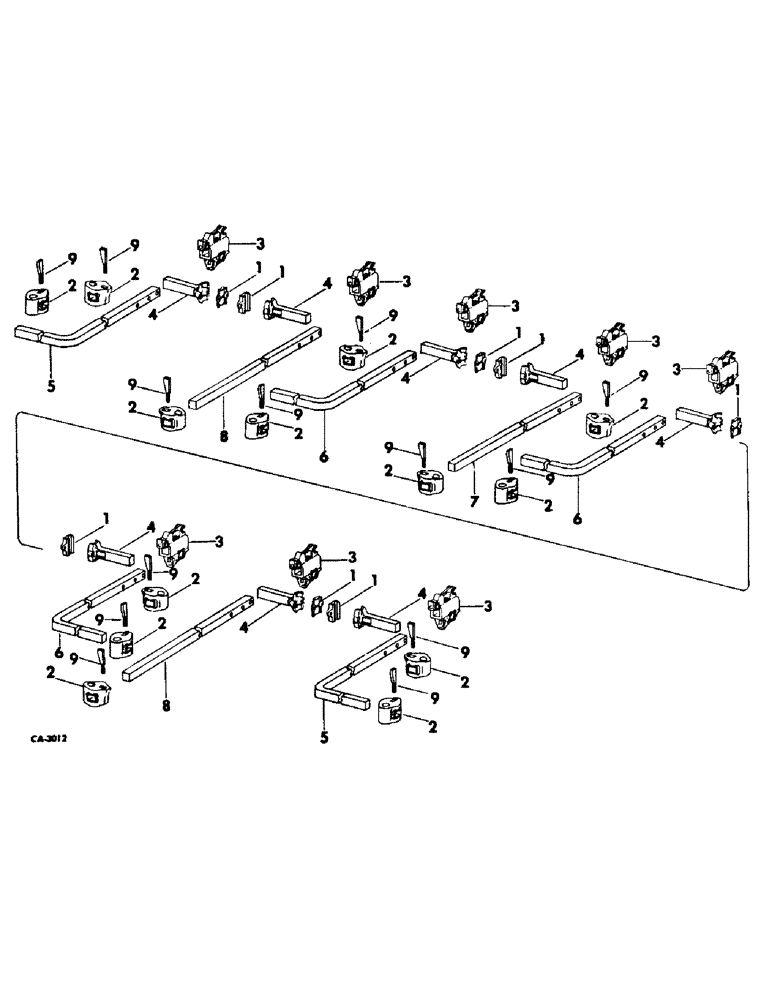

Запчасти Case IH 163 (AQ-05) - SQUARE BARS, EXTENSIONS AND CLAMPS, FOR 4-ROW WIDE

1

1779BB

CLAMP

CAP

8шт.

2

522557R2

CLAMP

standard

13шт.

3

522558R1

CLAMP, tool bar

8шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 C-Z hex-hd mach

8шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 C-Z hex-hd mach

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

4

28236BB

CLAMP

EXTENSION, tool bar 7-3/4 in.

8шт.

29822B

BOLT

1/2-13 x 2-3/4 sq-hd mach

16шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

16шт.

5

523380R1

TOOL BAR, bent short

2шт.

6

524334R1

TOOL BAR, bent long

3шт.

7

524335R1

TOOL BAR, straight long

1шт.

8

522566R1

TOOL BAR, straight short

2шт.

9

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

21шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

21шт.
