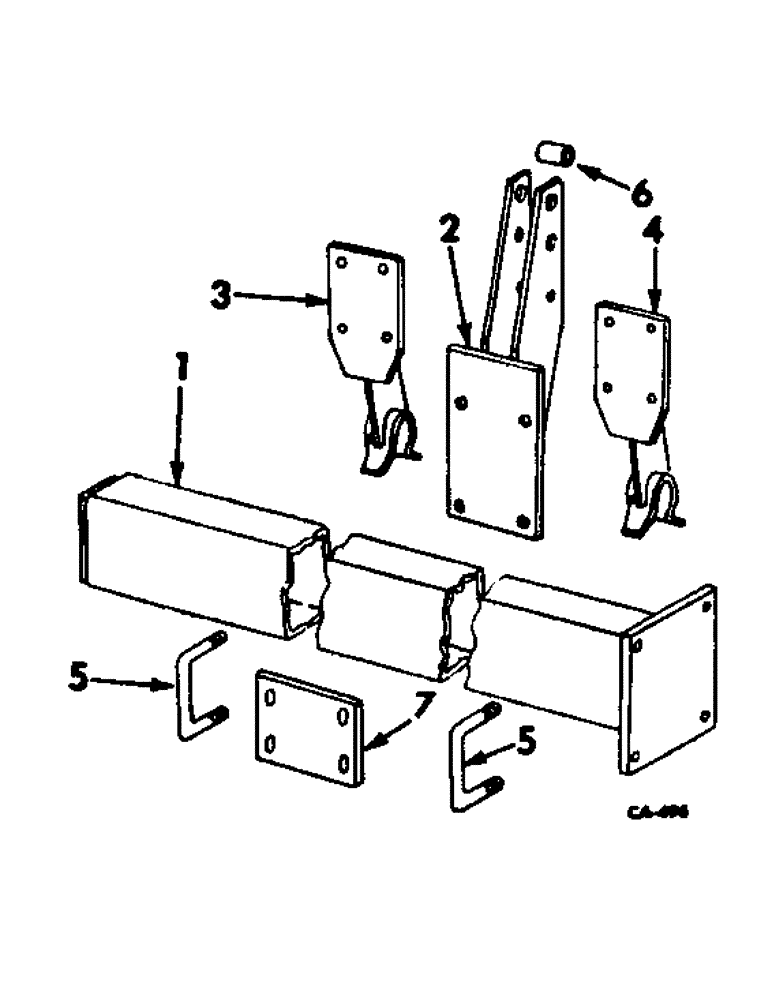

Запчасти Case IH 163 (AQ-02) - FRAME

1

543031R1

TUBE ASSY, 4 x 6 x 150 in., will work for 492965R1, for 4-row

1шт.

1

492943R3

TUBE

ASSY, 5 x 7 x 250 in., for 6-row

1шт.

1

492945R2

TUBE ASSY, 7 x 7 x 312 in., for 8-row

1шт.

2

492928R1

SUPPORT

MAST ASSY, hitch, for 6-row and 8-row

1шт.

22485R1

BOLT,5/8" x 7 1/4", Gr 5

SCREW, 5/8-11 x 7-1/4 znd hex-hd cap, for 6-row

4шт.

21130R1

BOLT,Hex, 5/8" - 11 x 9", Gr 5

SCREW, 5/8-11 x 9 znd hex-hd cap, for 8-row

2шт.

23830R1

BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5

SCREW, 5/8-11 x 9-1/2 znd hex-hd cap, for 8-row

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

3

492931R1

BRACKET

ASSY, hitch LH, for 6-row and 8-row

1шт.

4

492932R1

BRACKET

ASSY, hitch RH, for 6-row and 8-row

1шт.

5

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, hitch bracket, for 6-row

4шт.

5

493841R1

U-BOLT

hitch bracket, for 8-row

4шт.

23831R1

NUT,7/8"-9, G8

7/8-9 type 4 C-Z hex.

8шт.

6

462425R1

SPACER

upper link, for 6-row and 8-row

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4-10 x 4-1/4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

493842R1

PLATE, mast, for 6-row and 8-row

1шт.
