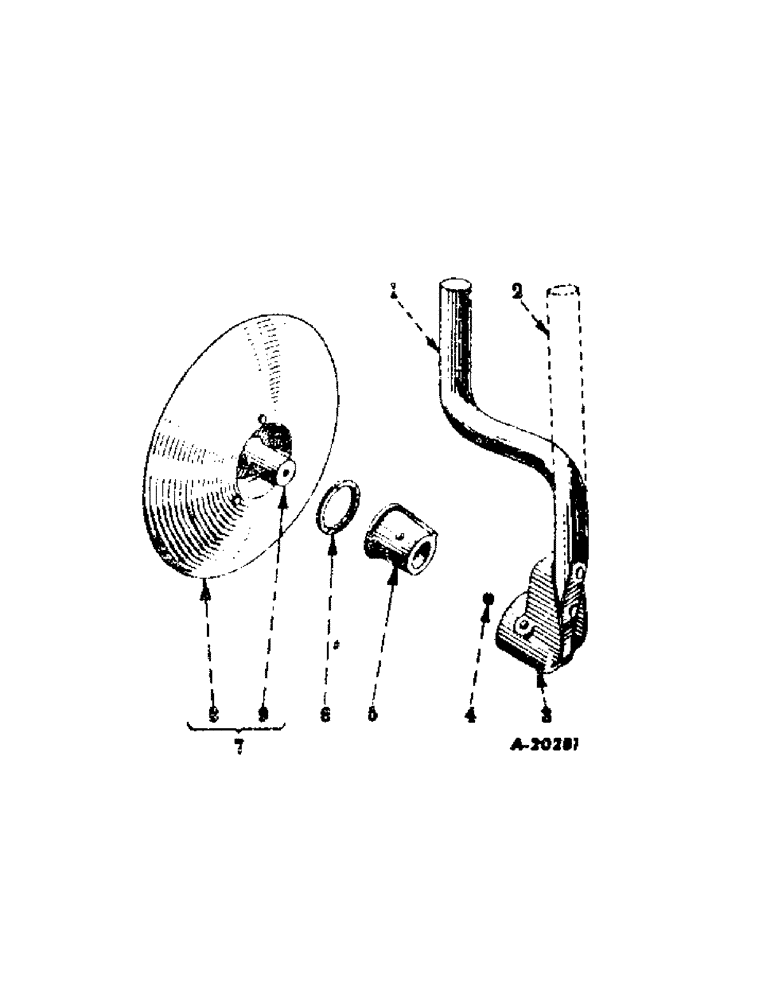

Запчасти Case IH 163 (AQ-20) - DISK HILLERS

1

29238B

STANDARD

1шт.

110437

RIVET,But Hd, 7/16" x 1 1/2"

7/16 x 1-1/2 rd-hd

2шт.

2

29514B

STANDARD

1шт.

110437

RIVET,But Hd, 7/16" x 1 1/2"

7/16 x 1-1/2 rd-hd

2шт.

3

1438BX

BRACKET ASSEMBLY, standard

1шт.

19888R1

SCREW, 7/16-14 x 1-C-Z sq-hd cup-pt set

1шт.

4

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive-type str lub

1шт.

5

1436BA

SLEEVE CYLINDER

SLEEVE, bearing

1шт.

22011R1

BOLT, 3/8 x 3-3/8 C-Z sq-nk crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

20609R1

WASHER

15/32 x 1-3/4 x 11 ga C-Z

1шт.

6

M1

WASHER

felt

1шт.

7

25458BB

HUB CAP

DISK ASSEMBLY

1шт.

8

29955B

DISC

DISK, 13 in.

1шт.

9

1894BA

HUB CAP

HUB, disk

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss-hd solid

6шт.
