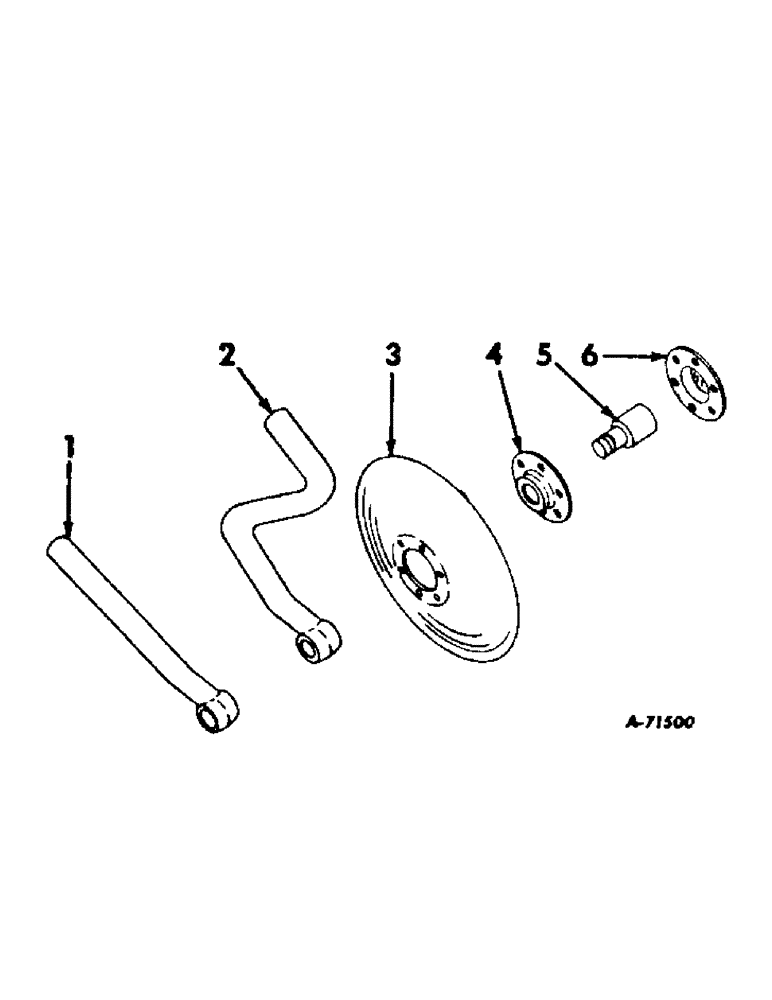

Запчасти Case IH 163 (AQ-20[A]) - DISK HILLERS

1

469373R1

SUPPORT ASSY.

STANDARD, straight, 12 in.

1шт.

1

487296R1

STANDARD, straight, 16 in., for 6-row and 8-row

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt set

1шт.

2

469374R1

SUPPORT ASSY.

STANDARD, offset

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt set

1шт.

3

469372R1

DISC,13"

DISK, 13 in.

1шт.

3

487298R1

DISC

DISK, 14 in., for 6-row and 8-row

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

4

468009R1

RETAINER

HOUSING, bearing, half open

1шт.

104097

RIVET,But Hd, 5/16" x 3/4"

5/16 x 3/4 b-hd

6шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

6

468008R1

COVER

HOUSING, bearing, closed half

1шт.

6

487081R1

COVER

HOUSING, bearing, closed half, for 6-row and 8-row

1шт.
