Запчасти Case IH 163 (AQ-19) - ROOLING SHIELDS

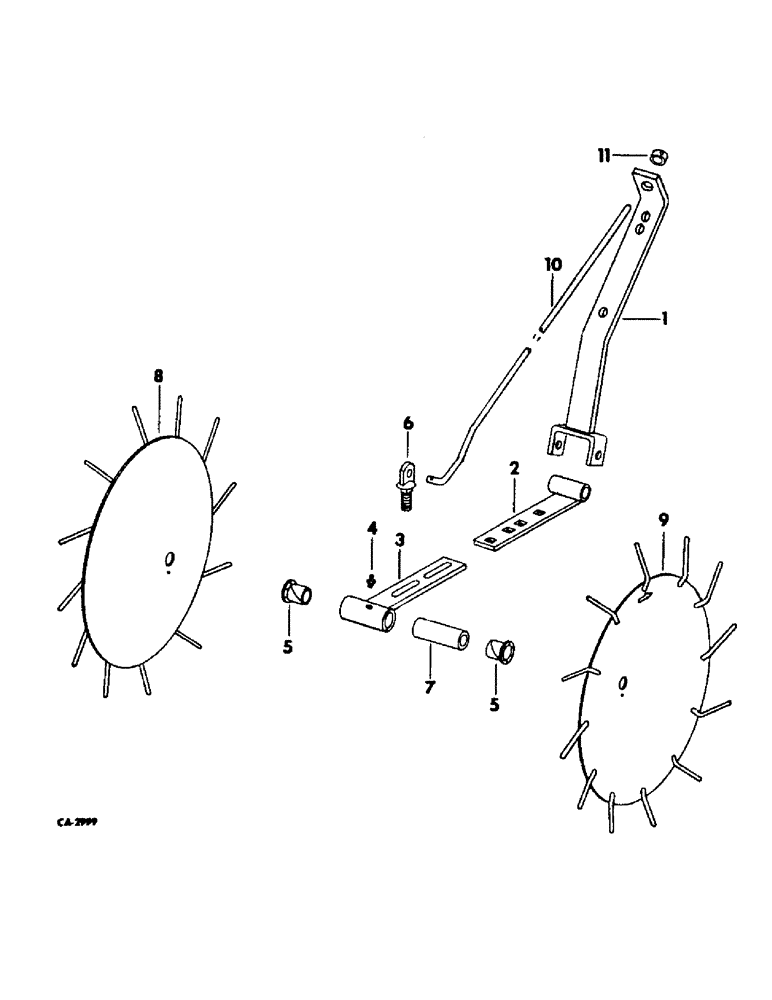

Схема запчастей Case IH 163 - (AQ-19) - ROOLING SHIELDS
10
6
4
2
8
7
5
3
1
9
11
5

Артикул

Название

Примечание

Количество

1

542920R1

BRACKET

ASSY, mounting

2шт.

1

542924R1

BRACKET

ASSY, offset mounting

1шт.

1

542925R1

BRACKET

ASSY, offset mounting

1шт.

2

542929R1

PIVOT

ASSY

2шт.

516227R1

DOWEL

PIN, 5/8 x 4, pln hd type 1

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

2шт.

3

542932R1

HOUSING

ASSY, brg

2шт.

4

66584D

FITTING

3/16 drive type str lub

2шт.

5

546100R1

BUSHING,31.75mm ID x 34.14mm OD x 31.75mm L

flanged nyliner

4шт.

6

542935R1

BOLT

TAB ASSY, rod

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 znd sq-nk crg

2шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 11 ga C-Z

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

7

542937R1

BUSHING

2шт.

21223R1

BOLT, 3/4-10 x 5-3/4 znd hex-hd mach

2шт.

20825R1

WASHER

25/32 x 2 x 11 ga C-Z

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

8

546102R1

DISC

DISK, LH

2шт.

9

546103R1

DISC

DISK, RH

2шт.

10

542939R1

ROD

straight bracket

2шт.

10

542940R1

ROD

offset bracket

2шт.

11

546101R11

COLLAR

W/SET SCREW

2шт.

22212R1

SCREW

3/8 x 5/8 znd sq-hd cup-pt set

2шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

4шт.

542948R1

RAIL, spring teeth, 17-5/8 in. extension

2шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 znd sq-nk crg

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

Выбрано товаров: 32
