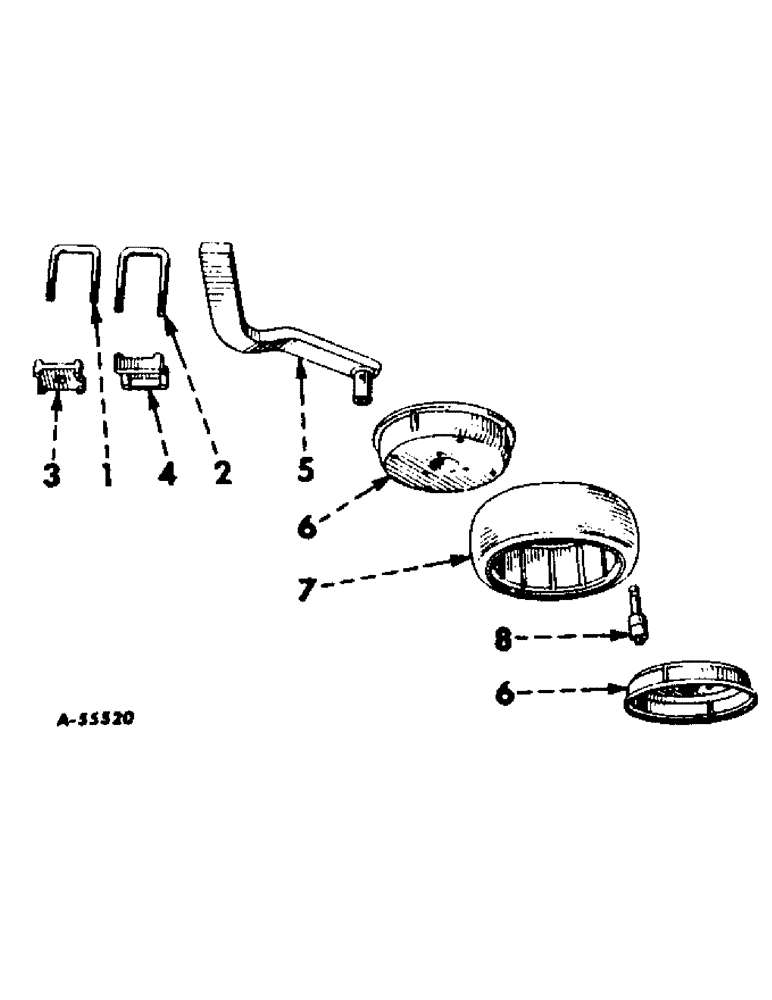

Запчасти Case IH 163 (AQ-18) - GAUGE WHEEL

1

522572R2

BOLT,U, 1/2" - 13 x 3 3/16"

U-BOLT, standard, for square tool bar

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

522647R1

BOLT,U, 1/2" - 13 x 3 5/8"

U-BOLT, standard, for round tool bar

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

522571R2

BLOCK

standard clamp, for square tool bar

2шт.

4

522635R1

CLAMP

BLOCK, standard clamp LH, for round tool bar

1шт.

4

522636R1

CLAMP

BLOCK, standard clamp RH, for round tool bar

1шт.

5

526766R11

SUPPORT ASSY.

STANDARD ASSY, LH

1шт.

5

526767R11

SUPPORT ASSY.

STANDARD ASSY, RH

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 C-Z hex-soc-hd f-pt set

2шт.

6

526768R1

WHEEL

RIM, gauge wheel

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 C-Z hex-hd mach

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120376

NUT,5/16"-18, G5

14шт.

7

516492R1

TYRE/TIRE

TIRE, 4 x 12 semi-pneumatic

2шт.

8

ST667

BEARING

ASSY

2шт.
