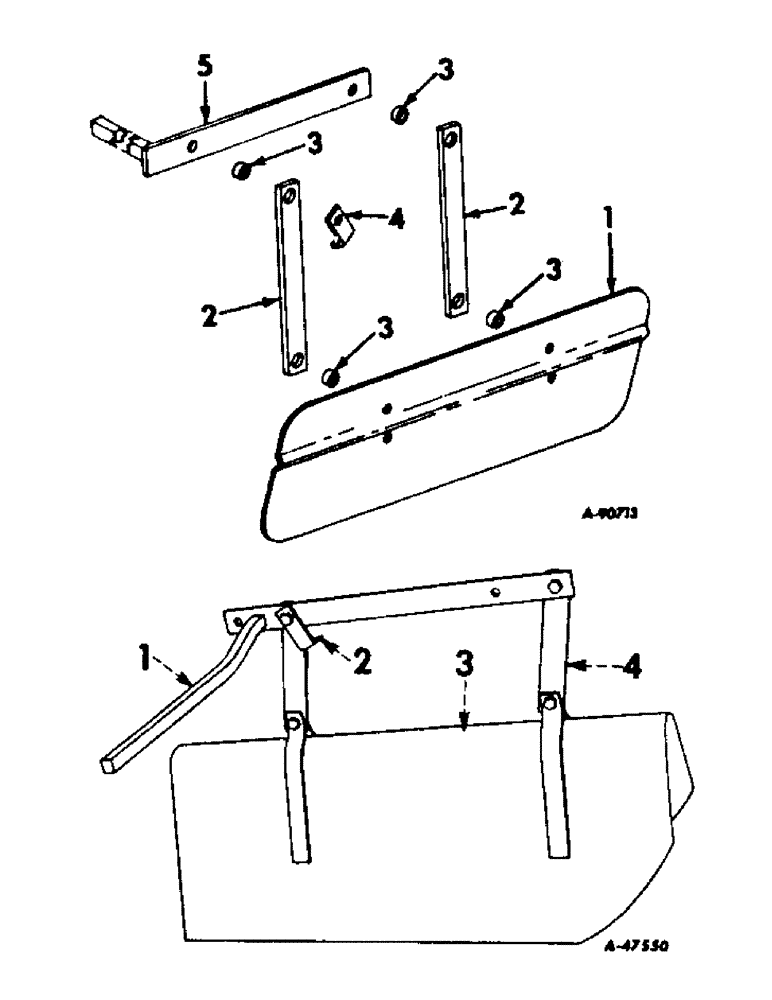

Запчасти Case IH 163 (AQ-17) - OUTER SHIELD

1

526319R1

SHIELD

LH

1шт.

1

526320R1

SHIELD

RH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

510754R1

LINK, pivot

4шт.

3

512836R1

WASHER

BUSHING, pivot link

8шт.

4

515217R1

SUPPORT

CLIP, shield adjusting

2шт.

5

523437R91

SUPPORT ASSEMBLY, outer shield

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

1

523931R91

SUPPORT ASSEMBLY, shield left

1шт.

1

523932R91

SUPPORT ASSEMBLY, shield right

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

515217R1

SUPPORT

CLIP, shield adjusting

1шт.

3

513267R91

SHIELD ASSEMBLY

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

4

513265R1

LINK, pivot

4шт.

512836R1

WASHER

BUSHING, pivot link

8шт.
