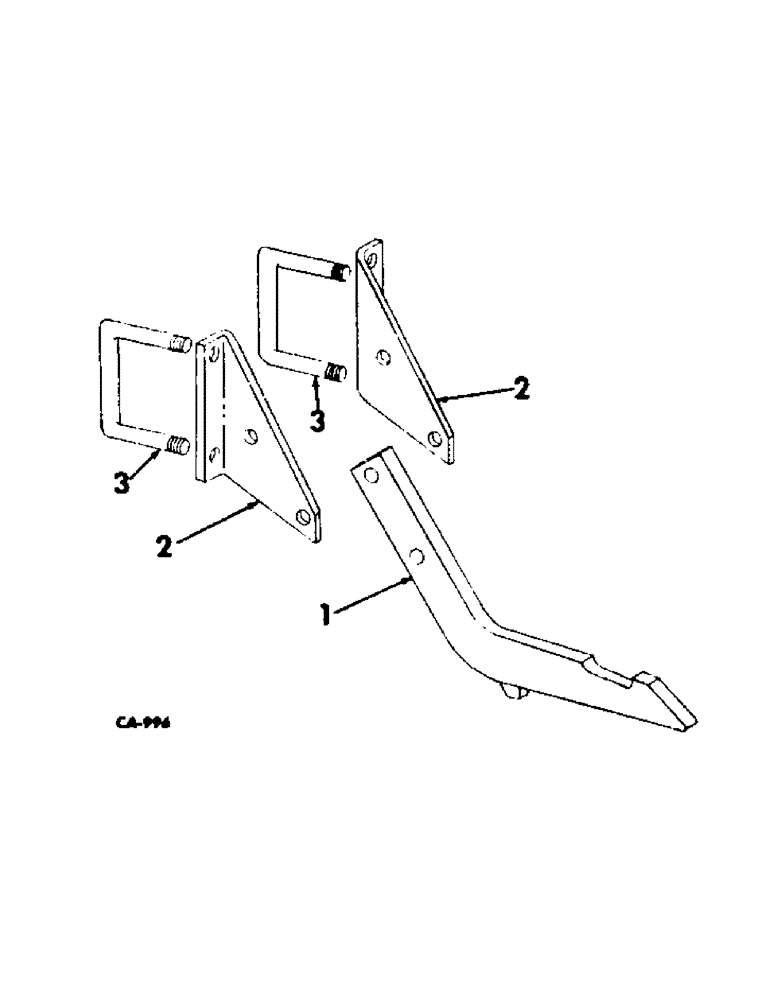

Запчасти Case IH 163 (AQ-15) - TWO-POINT FAST HITCH, FOR FOUR-ROW WIDE

1

493003R2

BEAM ASSY

2шт.

2

493470R1

BRACKET, two-point LH

2шт.

2

493471R1

BRACKET, two-point RH

2шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

493467R1

BOLT,3/4" - 10 x 5 1/2", Steel

U-BOLT

4шт.

22049R1

NUT,3/4"-10, G8

3/4-10 type 4 C-Z hex

8шт.

3

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.
