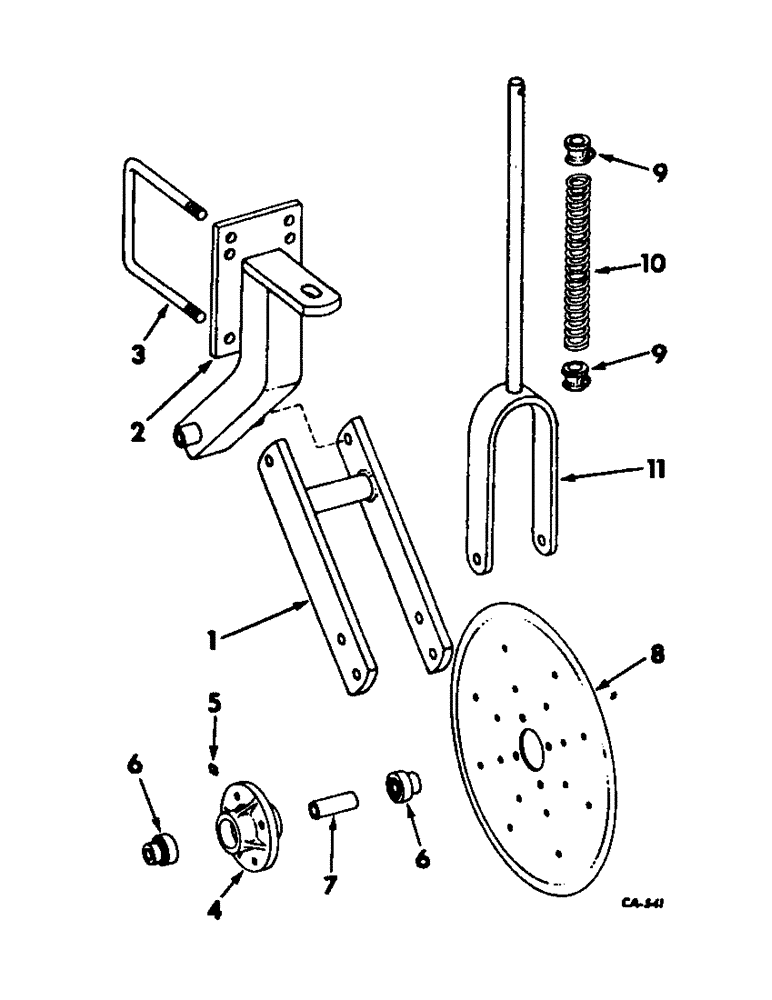

Запчасти Case IH 163 (AQ-10) - ROLLING GUIDE FIN, FLEXIBLE

1

492971R1

FRAME ASSY, guide fin

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 znd hex-hd cap

2шт.

17927R1

BOLT,Hex, 5/8" - 11 x 7", Gr 2

5/8-11 x 7 hex-hd mach

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

3шт.

19959R1

BOLT,Hex, 3/4" - 10 x 7", Gr 5

SCREW, 3/4-10 x 7 hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

2

492974R1

BRACKET ASSY, guide fin

1шт.

3

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, bracket att, for 4-row

2шт.

3

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

bracket att, for 6-row

2шт.

3

1250813C1

U-BOLT

bracket att, for 8-row

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

4

478433R1

HUB

guide fin

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF2 str lub

1шт.

6

ST503

BALL BEARING,0.629" ID x 47" OD x 0.5512"

BEARING ASSY, ball

2шт.

7

478435R1

SPACER

brg

1шт.

8

478436R1

DISC

BLADE, rolling guide fin

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

4шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

9

PO2041X

COLLAR

W/SET SCREW, pressure rod

2шт.

21803R1

SET SCREW,1/2" - 13 x 5/8", Steel

SCREW, 1/2-13 x 5/8 C-Z sq-hd

2шт.

10

SA2017

SPRING

pressure

1шт.

11

490159R1

YOKE

ASSY, pressure rod

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.
