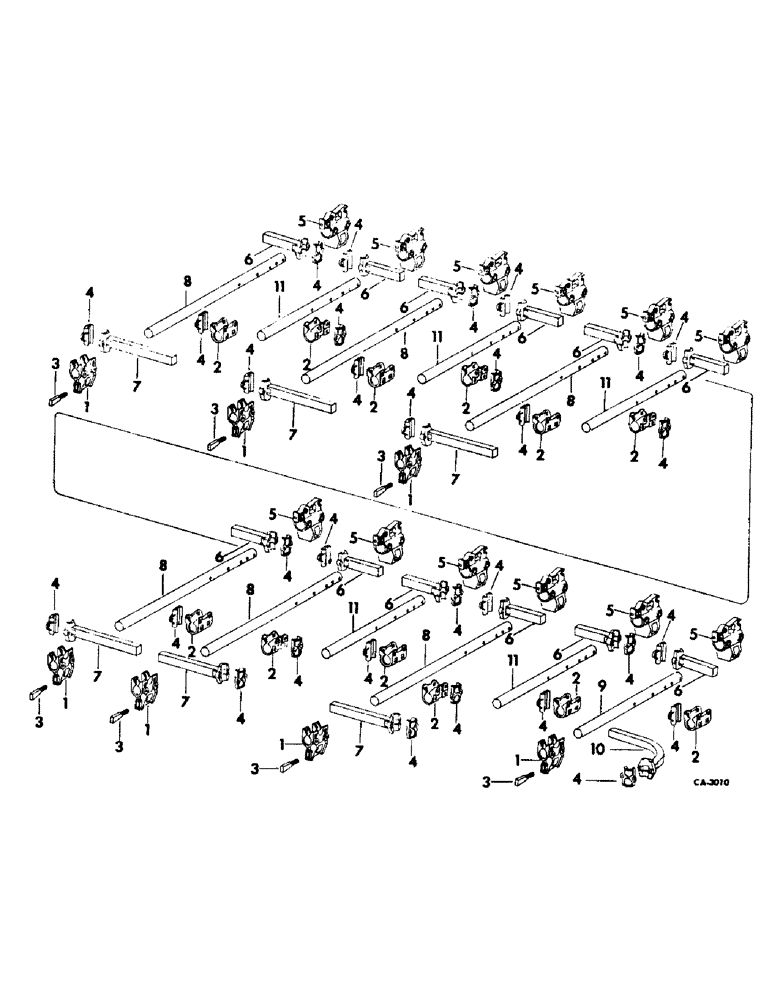

Запчасти Case IH 163 (AQ-08) - ROUND BARS, EXTENSIONS AND CLAMPS, FOR 6 AND 8 ROW
№
Артикул
Название
Примечание
Количество
1
1846BX
CLAMP
ASSY, tool bar extension, 7 for 6 row, 9 for 8 row
1шт.
22217R1
SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set, 2 per clamp
1шт.
18709R1
BOLT,Short NK, 1/2"-13 x 2 3/4", G2
1/2-13 x 2-3/4 C-Z sq-nk crg, 2 per clamp
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 2 per clamp 1/2"-13, G5
1шт.
2
1869BX
CLAMP
ASSY, standard, 12 for 6 row, 16 for 8 row
1шт.
22217R1
SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set, 1 per clamp
1шт.
29821B
BOLT, 1/2-13 x 2-1/2 sq-hd mach, 2 per clamp
1шт.
18710R1
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2
BOLT, 1/2-13 x 3 C-Z sq-nk crg, 2 per clamp
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 4 per clamp 1/2"-13, G5
1шт.
3
27585BA
BOLT,Wedge, 1/2" - 13 x 4 1/2", Long
wedge, 7 for 6 row, 9 for 8 row
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per bolt 1/2"-13, G5
1шт.
4
1779BB
CLAMP
CAP, 31 for 6 row, 41 for 8 row
1шт.
5
522641R1
CLAMP
tool bar attaching, 12 for 6 row, 16 for 8 row
1шт.
17433R1
HARDWARE,Hex, 1/2" - 13 x 1", Gr 2
BOLT, 1/2-13 x 1 C-Z hex-hd mach, 1 per clamp
1шт.
18811R1
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2
1/2-13 x 2-3/4 C-Z hex-hd mach, 2 per clamp
1шт.
120384
WASHER,1/2"
LOCK, , 2 per clamp 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 2 per clamp 1/2"-13, G5
1шт.
22217R1
SCREW, 5/8-11 x 1 C-Z sq-hd cup-pt set, 2 per clamp
1шт.
6
28236BB
CLAMP
EXTENSION, tool bar 7-3/4 in., 12 for 6 row, 16 for 8 row
1шт.
29822B
BOLT
1/2-13 x 2-3/4 sq-hd mach, 2 per extension
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 2 per extension 1/2"-13, G5
1шт.
7
524336R1
CLAMP
EXTENSION, tool bar 13 in., 1 per row
1шт.
29822B
BOLT
1/2-13 x 2-3/4 sq-hd mach, 2 per extension
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 2 per extension 1/2"-13, G5
1шт.
8
523653R3
TOOL BAR, 36 in. long, 1 per row
1шт.
9
483566R1
TOOL BAR, outer RH
1шт.
10
525818R1
EXTENSION, curved tool bar
1шт.
29822B
BOLT
1/2-13 x 2-3/4 sq-hd mach
2шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
2шт.
11
522646R3
PIPE
TOOL BAR, 25-1/2 in. long, 5 for 6 row, 7 for 8 row
1шт.
Выбрано товаров: 30
