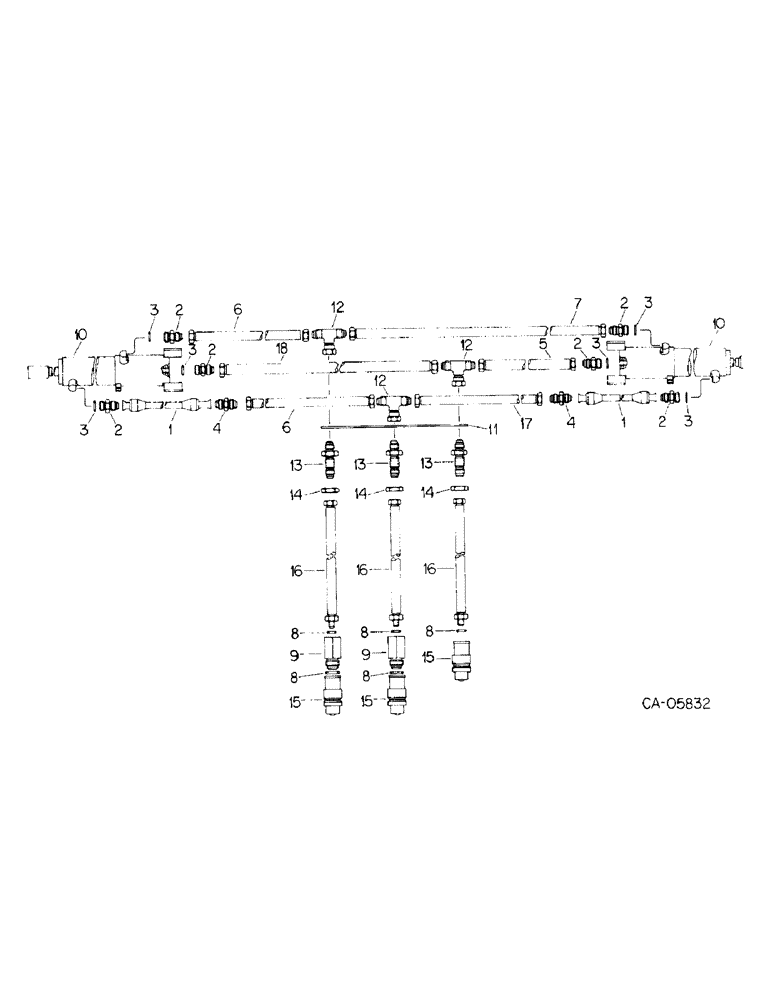

Запчасти Case IH 153 (AP-07) - HYDRAULIC CONNECTIONS, UNIT Z

1

100303C1

HYD TUBE,322.6 mm Length

TUBE ASSY, hydraulic

2шт.

2

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel

6шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

6шт.

4

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 znd 37 deg hyd flared tube

2шт.

5

113374C1

HOSE

50 in. hydraulic

1шт.

6

100384C1

HOSE

65 in. hydraulic

1шт.

6

100417C1

HOSE

55 in. hydraulic

2шт.

7

119743C1

HOSE

69 in. hydraulic

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

5шт.

9

493960R91

VALVE

ASSY, drop retarding

2шт.

103575

PIN,#1 x 1 1/4", Tapered

no. 1 x 1-1/4 pln taper

2шт.

10

113978C93

CYLINDER

ASSY, 3-1/2 x 12 in. two stage hydraulic, refer to cyl, 1 for components

2шт.

63498C91

SEAL PACKAGE

KIT, o-ring and seal service

1шт.

11

119984C1

BAR

hyd hose

1шт.

12

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 znd 37 deg hyd flared tube swivel

3шт.

13

9403256

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

UNION, 7/8-14 znd 37 deg hyd flared tube bulkhead

3шт.

14

9403295

BHD LOCK NUT,Blkhd, 7/8"-14

NUT, 7/8-14 znd bulkhead lock

3шт.

15

544787R91

COUPLING, BREAK AWAY

COUPLER, male

3шт.

16

541629R1

HOSE

46 in. hydraulic

3шт.

17

119743C1

HOSE

69 in. hyd

1шт.

18

100384C1

HOSE

65 in hyd

1шт.
