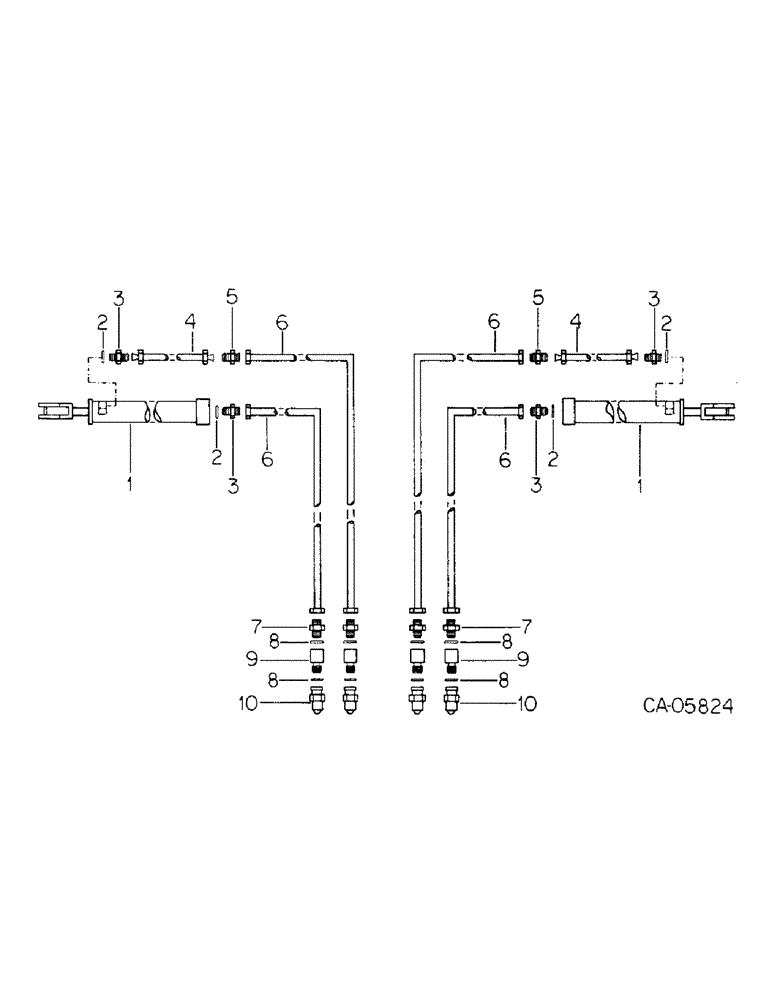

Запчасти Case IH 153 (AP-06) - HYDRAULIC CONNECTIONS, UNITS X AND Y

1

108606C91

CYLINDER

ASSY, 3 x 12 in. double acting hydraulic, refer to cyl, 1 for components

2шт.

62581C91

SEAL KIT

o-ring and seal service

1шт.

2

570628R1

O-RING, 1/2 OD tube

4шт.

3

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 znd 37 deg hyd flared tube short swivel

4шт.

4

100303C1

HYD TUBE,322.6 mm Length

TUBE ASSY, hydraulic

2шт.

5

9402787

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

3/4-16 znd 37 deg hyd flared tube

2шт.

6

100281C1

HOSE

75 in. hydraulic

4шт.

7

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 znd 37 deg hyd flared tube short swivel

4шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

8шт.

9

493930R91

VALVE ASSY, drop retarding

4шт.

103575

PIN,#1 x 1 1/4", Tapered

no. 1 x 1-1/4 pln taper

4шт.

10

544787R91

COUPLING, BREAK AWAY

COUPLER, male

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

4шт.
