Запчасти Case IH 153 (AP-36) - ROLLING SHIELD, FOR UNITS A, B, D THRU H, K THRU N, R THRU V, X, Y AND Z, ONE PER ROW

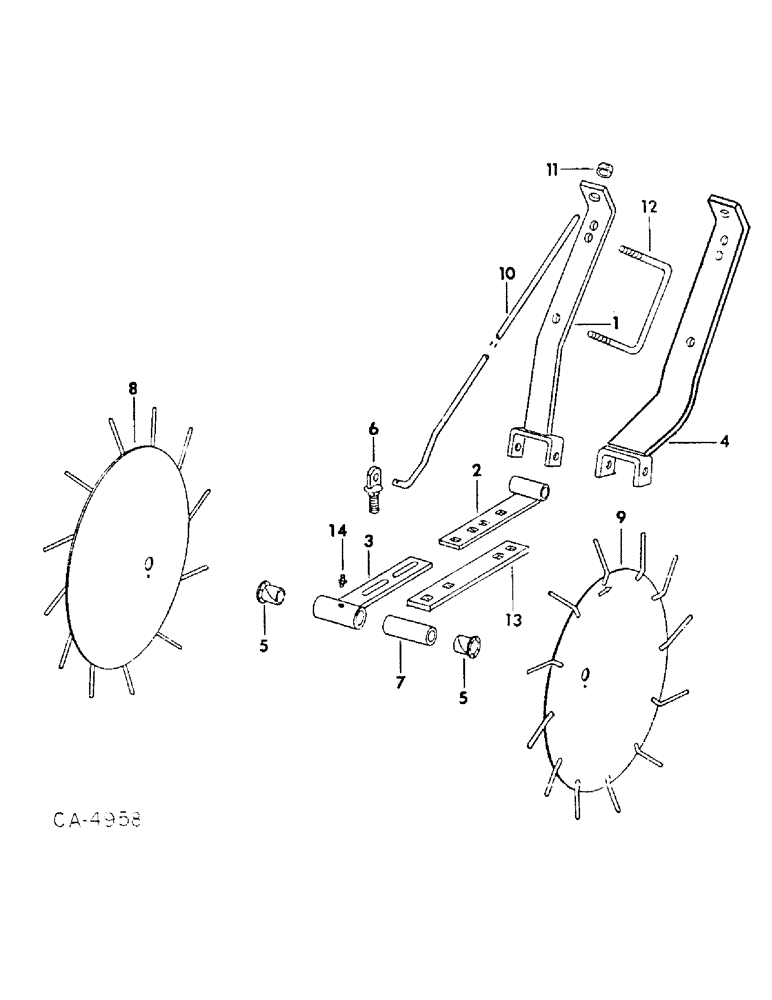

Схема запчастей Case IH 153 - (AP-36) - ROLLING SHIELD, FOR UNITS A, B, D THRU H, K THRU N, R THRU V, X, Y AND Z, ONE PER ROW
6
8
5
2
9
11
13
3
5
4
12
7
10
14
1

Артикул

Название

Примечание

Количество

1

542920R2

BRACKET

ASSY, straight mounting

1шт.

2

542929R1

PIVOT

ASSY

1шт.

516227R1

DOWEL

PIN, 5/8 x 4 std-hd

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

1шт.

3

542932R1

HOUSING

ASSY, bearing

1шт.

4

542924R2

BRACKET

ASSY, offset mounting, mounted on RH side of hitch

1шт.

4

542925R2

BRACKET

ASSY, offset mounting, mounted on LH side of hitch

1шт.

5

546100R1

BUSHING,31.75mm ID x 34.14mm OD x 31.75mm L

flanged nyliner, 2 per row

1шт.

6

542935R1

BOLT

TAB ASSY, row

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 znd sq-nk crg

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

21/32 x 1-5/16 x 11 ga C-Z, 2 per row

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per row 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per row

1шт.

7

542937R1

BUSHING

1 per row

1шт.

21223R1

BOLT, 3/4-10 x 5-3/4 znd hex-hd mach

1шт.

20825R1

WASHER

25/32 x 2 x 11 ga C-Z, 4 per row

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per row

1шт.

280954

NUT,3/4"-10, G5

1 per row 3/4"-10, G5

1шт.

8

546102R1

DISC

DISK, LH

1шт.

9

546103R1

DISC

DISK, RH

1шт.

10

542939R2

ROD

bracket straight, 1 per bracket, used w/bracket, 542920R2

1шт.

10

542940R2

ROD

bracket offset, used w/brackets, 542924R2 and 542925R2

2шт.

11

546101R11

COLLAR

W/SET SCREW, 1 per bracket

1шт.

22212R1

SCREW

3/8 x 5/8 znd sq-hd cup-pt set, 1 per collar

1шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), , 2 per collar 3/16" x 1"

1шт.

12

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, 5/8 in., used on 4 x 6 in. frames

1шт.

12

492942R2

U-BOLT

5/8 in., used on 5 x 7 in. frames

1шт.

12

493837R2

U-BOLT

5/8 in., used on 7 x 7 in. frames

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

13

542948R1

RAIL, vibra tine extension

1шт.

13

542947R1

RAIL

vibra shank

1шт.

18719R1

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 2

BOLT, 5/8-11 x 1-3/4 znd sq-nk crg

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

14

66584D

FITTING

3/16 str drive type lub

1шт.

Выбрано товаров: 35
