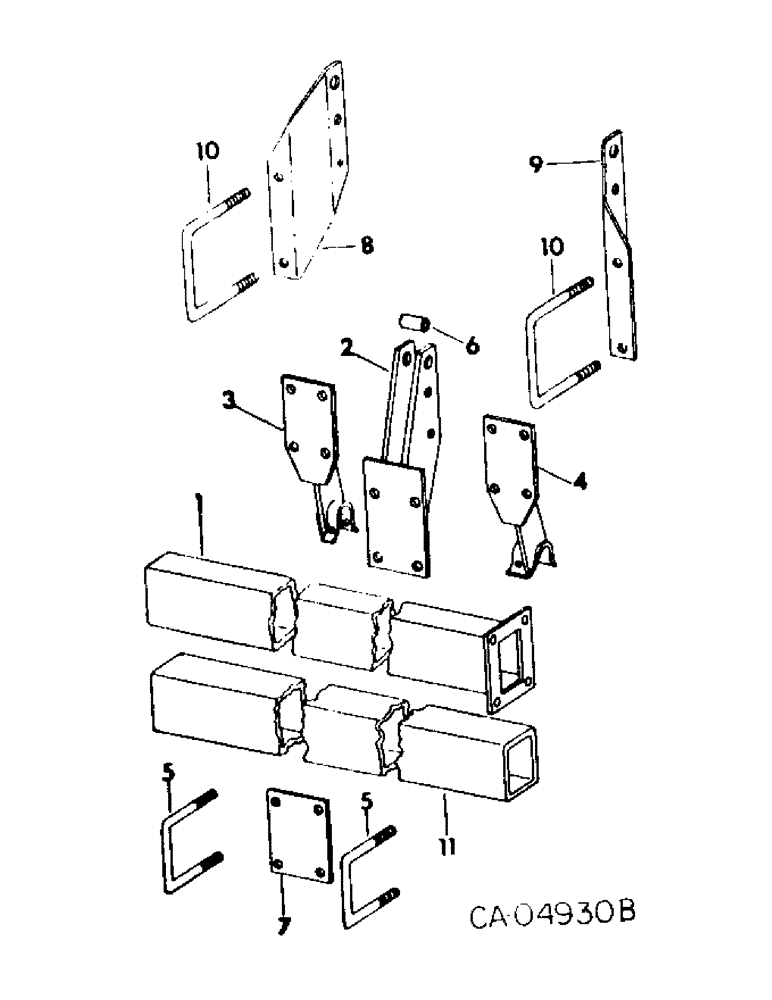

Запчасти Case IH 153 (AP-03) - FRAME, RIGID, UNITS A THROUGH Z

1

492944R1

TUBE ASSY, 5 x 7 x 250 in., for units X and Y

1шт.

1

542155R1

TUBE ASSY, 7 x 7 x 250 in. for unit Z

1шт.

1

543032R1

TUBE ASSY, 4 x 6 x 168 in., for unit H and M

1шт.

1

492957R1

TUBE ASSY, 4 x 6 x 130 in., for units J, K and L

1шт.

1

543033R1

TUBE

ASSY, 4 x 6 x 190 in., for units F, P and U

1шт.

1

492943R3

TUBE

ASSY, 5 x 7 x 250 in., for units A, B, C, G and N

1шт.

1

492924R2

TUBE ASSY, 7 x 7 x 370 in., for units E, Q and S

1шт.

1

542154R2

FRAME

TUBE ASSY, 7 x 7 x 330 in., for units D, R and T

1шт.

1

547306R1

TUBE ASSY, 4 x 6 x 88 in., unit V

1шт.

2

492928R1

SUPPORT

MAST ASSY, hitch, for units A thru E, G, N and Q thru T

1шт.

22485R1

BOLT,5/8" x 7 1/4", Gr 5

SCREW, 5/8-11 x 7-1/4 znd hex-hd cap, for units A, B, C, G and N

2шт.

23830R1

BOLT,Hex, 5/8" - 11 x 9 1/2", Gr 5

SCREW, 5/8-11 x 9-1/2 znd hex-hd cap, for units D, E and Q thru T

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

19824R1

BOLT,Hex, 5/8" - 11 x 7 1/2", Gr 5

SCREW, 5/8-11 x 7-1/2 znd hex-hd cap, for units A, B, C, G AND N

2шт.

3

492931R1

BRACKET

ASSY, hitch LH, for units A thru E, G, N, Q thru T, X, Y and Z

1шт.

4

492932R1

BRACKET

ASSY, hitch RH, for units A thru E, G, N, Q thru T, X, Y and Z

1шт.

5

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, 5 x 7 frame

4шт.

5

493841R1

U-BOLT

7 x 7 frame

4шт.

23831R1

NUT,7/8"-9, G8

7/8-9 type 4 C-Z hex.

8шт.

6

462425R1

SPACER

upper link, for units A thru E, G, N, Q thru T, X, Y and Z

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4-10 x 4-1/4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

492947R1

PLATE, mast, for units A thru E, G, N and Q thru T

1шт.

7

492966R2

PLATE, mast, for units F, H thru M, P, U and V

1шт.

8

100297C1

PLATE

mast LH, 5 x 7

1шт.

9

100298C1

PLATE

mast RH, 5 x 7

1шт.

10

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, 5 x 7

2шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

11

(Not used this application)

1шт.
