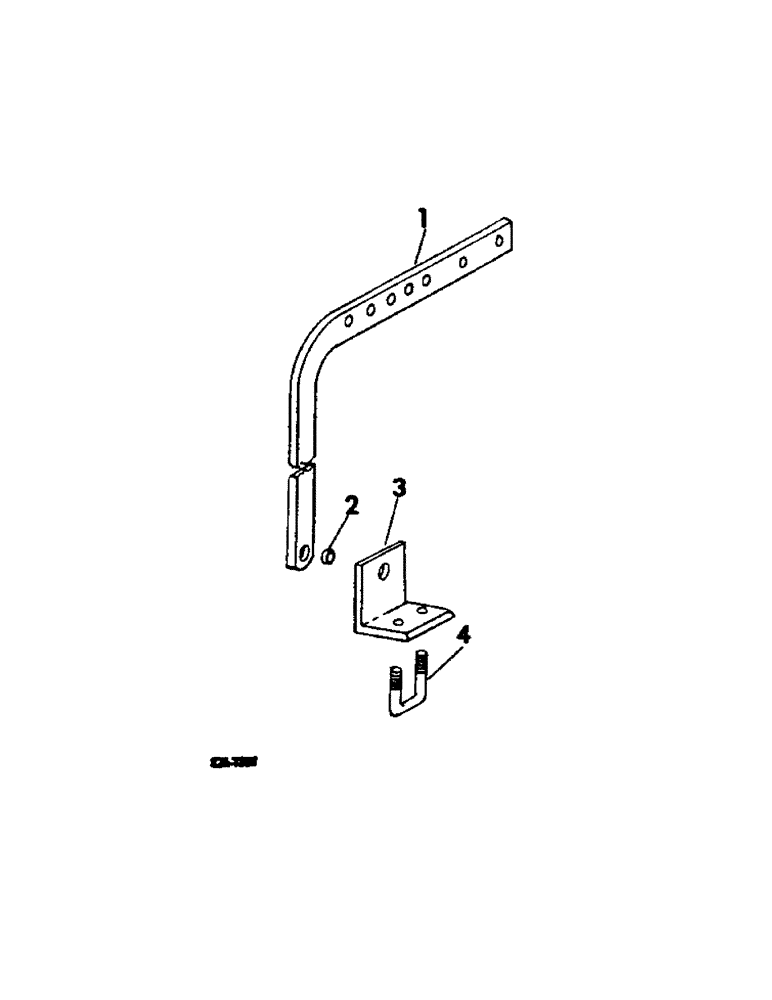

Запчасти Case IH 153 (AP-35) - JOCKEY BARS, FOR VIBRA SHANK TOOLING

1

542987R1

ARM

jockey bar, wide row units

1шт.

1

542988R1

ARM, jockey bar, narrow row units, 2 per row

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 znd hex-hd mach, one per bar

1шт.

120384

WASHER,1/2"

LOCK, , 1 per bar 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bar 1/2"-13, G5

1шт.

2

455410R1

SPACER

1 per jockey bar

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

SCREW, 1/2-13 x 2 znd hex-hd cap, 3 used for unit M and 5 used for unit N, 7 used for R and T

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 znd hex-hd cap

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga C-Z, 1 per spacer

1шт.

120384

WASHER,1/2"

LOCK, , 1 per screw 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per screw 1/2"-13, G5

1шт.

3

Not used in this application

1шт.

4

Not used in this application

1шт.
