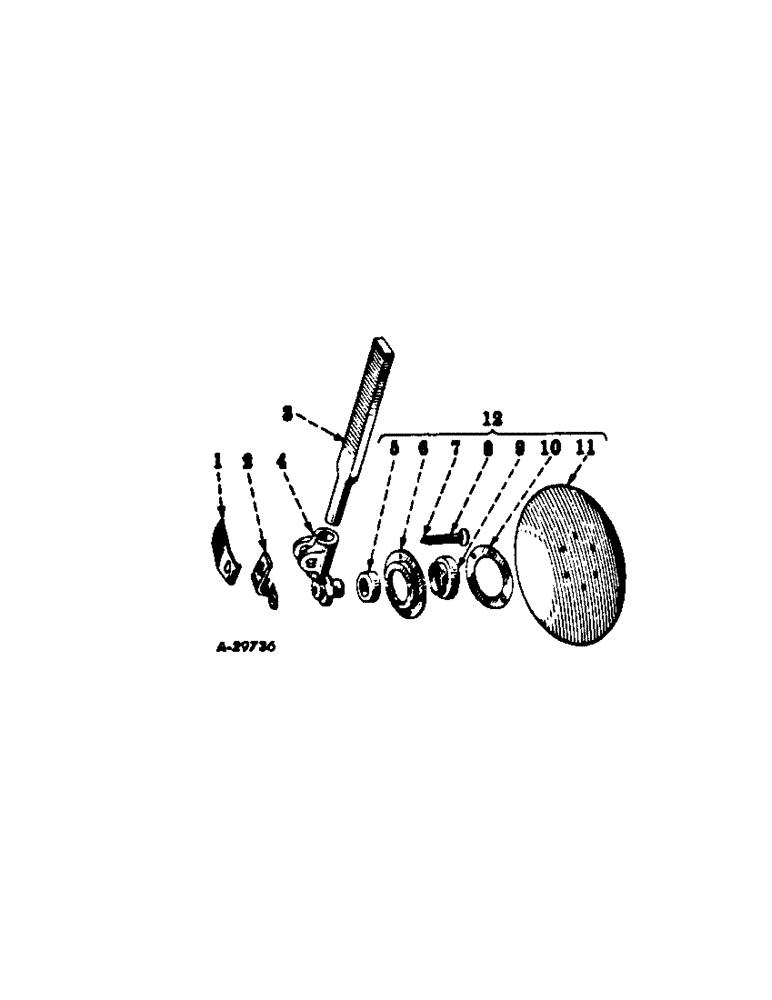

Запчасти Case IH 153 (AP-32) - DISK WEEDERS, BALL BEARING, FOR UNITS C AND J, UP TO 1972

1

Not used in this application

1шт.

2

Not used in this application

1шт.

3

521064R2

SUPPORT ASSY.

STANDARD

2шт.

4

517683R3

SUPPORT

2шт.

18708R1

BOLT,Short NK, 1/2"-13 x 1 3/4", G2

1/2 x 1-3/4 C-Z sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

SA6219

RUBBER SEAL

dust

2шт.

104082

RIVET,But Hd, 1/4" x 5/8"

1/4 x 5/8 rd-hd

12шт.

6

517685R1

RETAINER

HUB, bearing

2шт.

7

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive-type str lub

2шт.

8

517687R2

BOLT,Carriage, 1/2" - 13 x 2 1/2"

1/2 x 2-1/2 sq-nk dld crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9

ST616

BALL BEARING,0.75" ID x 2.377" OD x 0.625"

BEARING, ball

1шт.

10

SA6222

GASKET

2шт.

11

517686R31

DISC

DISK ASSEMBLY, 10 in.

1шт.

11

521970R21

DISK ASSEMBLY, 12 in.

1шт.

12

517688R92

DISC

DISK ASSEMBLY, 10 in.

1шт.

12

521972R92

DISC

DISK ASSEMBLY, 12 in.

1шт.
