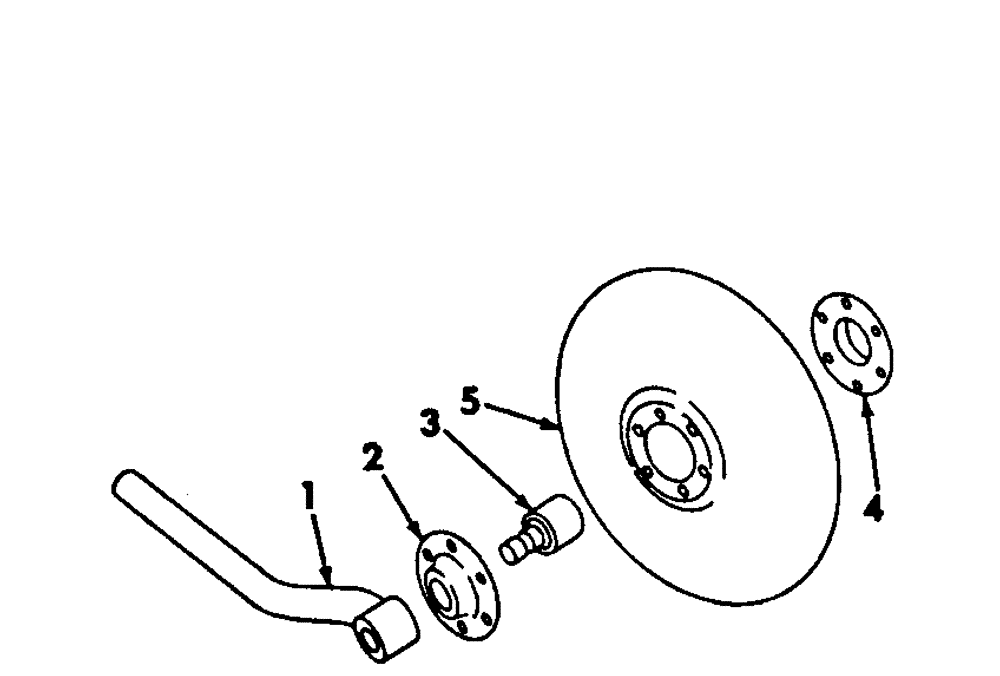

Запчасти Case IH 153 (AP-32[A]) - DISK WEEDERS, BALL BEARING, FOR UNITS C, J, P AND Q

1

483294R1

SUPPORT ASSY.

STANDARD, disk

2шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt set

2шт.

2

468009R1

RETAINER

HOUSING, open half brg

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

3

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING ASSY, ball

2шт.

4

468008R1

COVER

HOUSING, closed half brg

2шт.

5

469372R1

DISC,13"

DISK, 13 in.

1шт.
