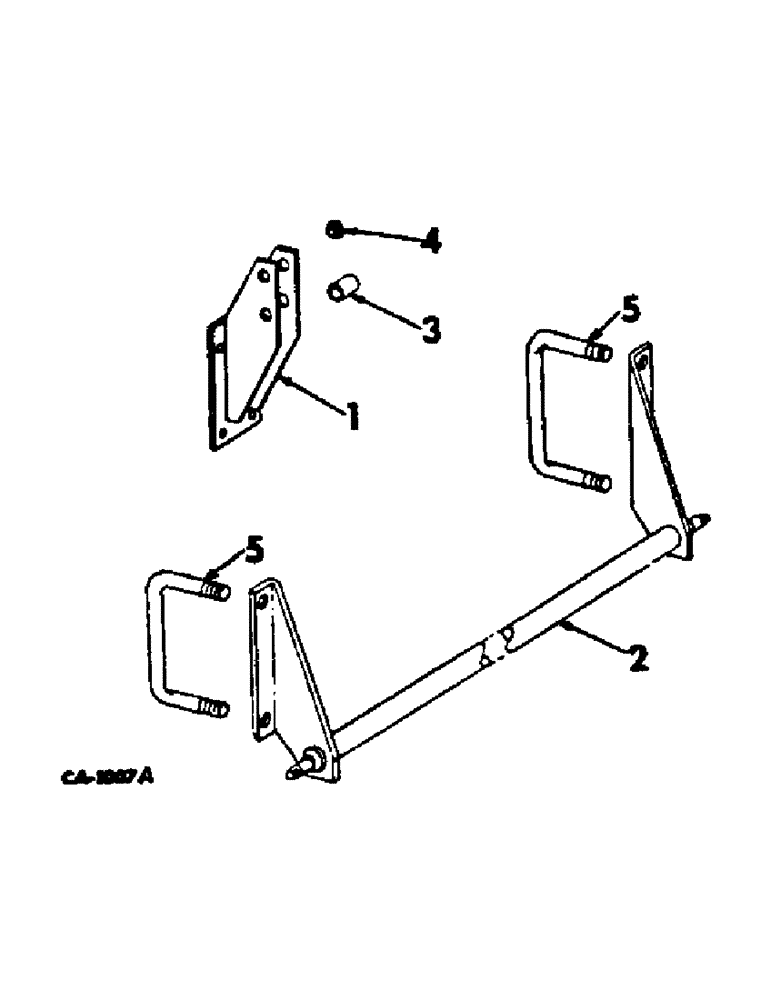

Запчасти Case IH 153 (AP-30[A]) - THREE-POINT HITCH CATEGORY I AND II FOR UNITS F THRU N, P AND U

1

493466R2

SUPPORT

MAST ASSY, hitch

1шт.

21136R1

SCREW, 5/8-11 x 6-1/4 znd hex-hd cap Hex, 5/8"-11 x 6 1/4", G5

2шт.

20166R1

BOLT,Hex, 5/8" - 11 x 6", Gr 5

SCREW, 5/8-11 x 6 znd hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

2

492995R2

BRACKET

SPREADER BRACKET ASSY, for category II

1шт.

2

492996R1

SPREADER BRACKET ASSY, for category I

1шт.

3

462425R1

SPACER

upper link

1шт.

18841R1

BOLT,Hex, 3/4"-10 x 4", G2

3/4 x 4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

4

481074R1

BUSHING, hitch bracket upper arm, for category I

2шт.

454417R1

SNAP RING,#100, Ext

Ring, Snap, , bushing #100, Ext

2шт.

5

493467R1

BOLT,3/4" - 10 x 5 1/2", Steel

U-BOLT, will work for strap 543008R1

2шт.

22049R1

NUT,3/4"-10, G8

3/4-10 znd hex.

4шт.
