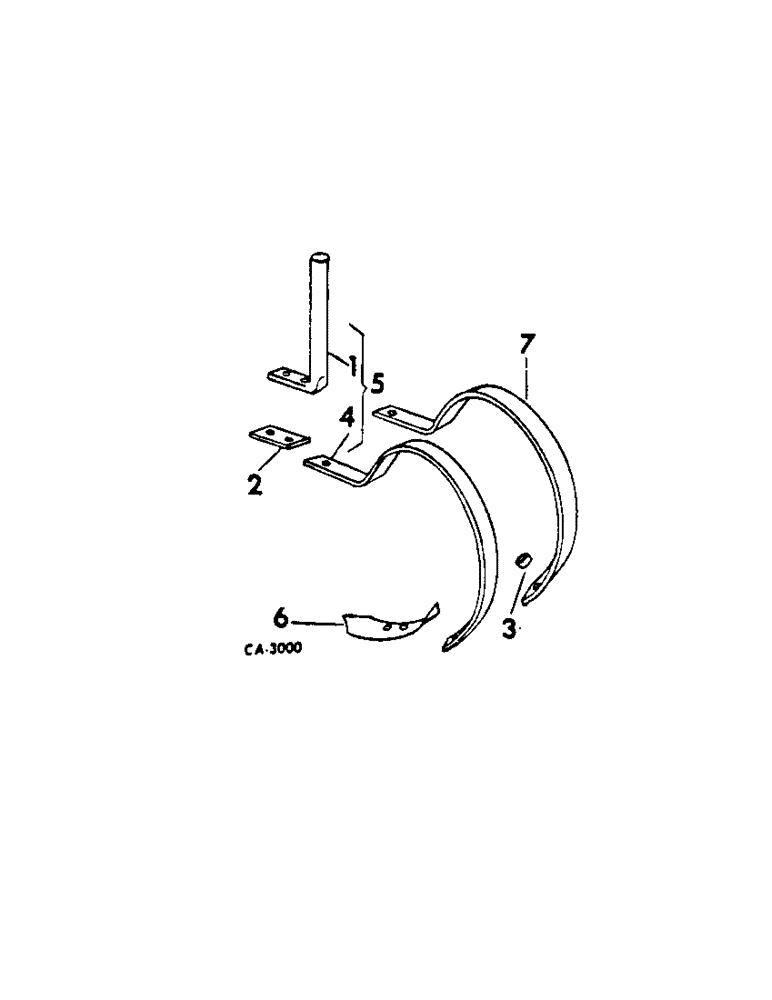

Запчасти Case IH 153 (AP-28[A]) - SPRING TEETH, FOR UNITS A, D, E, H, X, Y AND Z, BUILT FROM 1972 AND SINCE

1

516506R1

SUPPORT ASSY.

STANDARD, offset, for unit J

1шт.

1

516507R1

STANDARD, short, for unit J

1шт.

1

516503R1

SUPPORT

STANDARD, long, for unit J

1шт.

1

522087R2

ROD

STANDARD, long

1шт.

1

522286R2

SUPPORT ASSY.

STANDARD, short

1шт.

1

492840R1

SUPPORT ASSY.

STANDARD, long, 11-1/2 in., for units A, D and H

1шт.

2

522085R1

SPRING WASHER

adjusting

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

3

522086R2

ADJUSTER

BRACKET, adjusting

1шт.

4

522088R2

SPRING

TOOTH, spring

1шт.

5

522062R92

TOOTH

SPRING TOOTH ASSY, long std. single

1шт.

5

522282R92

TOOTH

SPRING TOOTH ASSY, short std. single

1шт.

5

466864R91

TOOTH

SPRING TOOTH ASSY, short std. double

1шт.

5

466865R91

TOOTH

SPRING TOOTH ASSY, long std. double

1шт.

5

492836R91

TOOTH

SPRING TOOTH ASSY, 11-1/2 in., long single, for units A and H

1шт.

5

492837R91

TOOTH

SPRING TOOTH ASSY, 11-1/2 in., long double, for units A, D and H

1шт.

6

25702BA

SHOVEL

double point

1шт.

490648R1

CLIP

sweep bolt

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

1шт.

25548BBX

BOLT,7/16" - 14 x 1 1/2"

ASSY, 7/16 x 1-1/2 C-Z ov-hd

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

25596BBX

BOLT

ASSY, 7/16 x 2 C-Z ov-hd

1шт.

21029R1

WASHER

15/32 x 1 x 11 ga C-Z

1шт.

542175R1

BOLT ASSY, sweep

1шт.

549783R1

PLOW BOLT,Spcl, 7/16" - 14 x 2 1/2"

BOLT, special sweep and shovel

1шт.

7

466866R1

TOOTH

outer spring

1шт.

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

8

SA2344

SPACER,3/8" Pipe x 7/16"

outer spring tooth

1шт.
