Запчасти Case IH 153 (AP-27) - DISK HILLERS, FOR UNITS A, B, D, E, H, K, L, U, X, Y AND Z

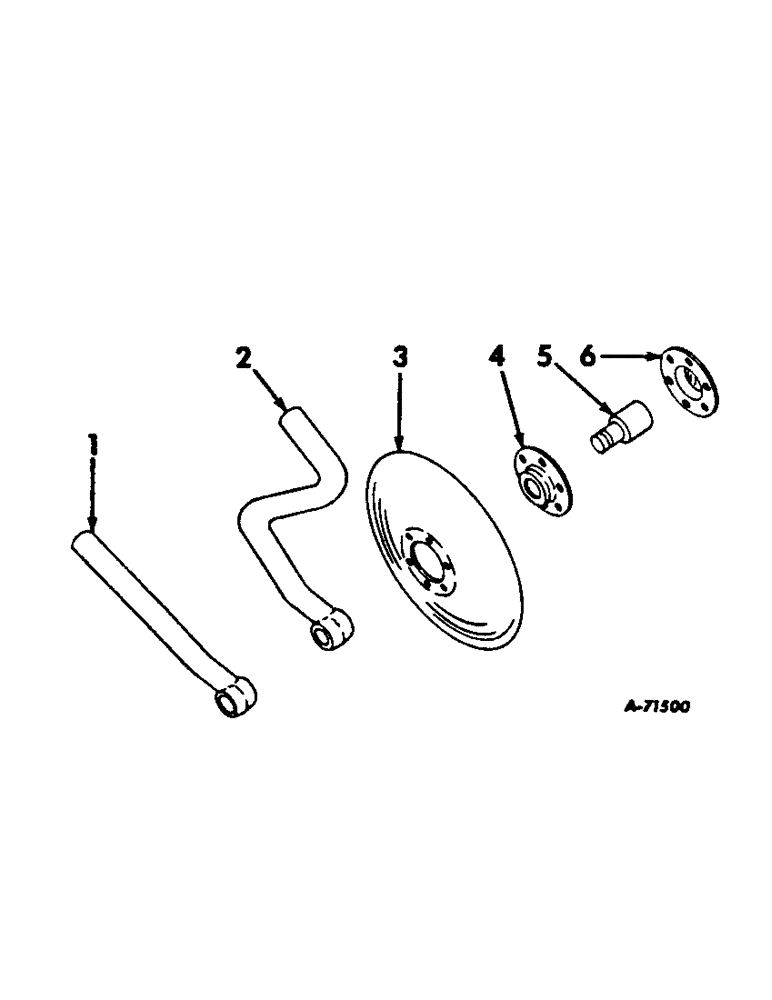

Схема запчастей Case IH 153 - (AP-27) - DISK HILLERS, FOR UNITS A, B, D, E, H, K, L, U, X, Y AND Z
3
5
2
4
1
6

Артикул

Название

Примечание

Количество

1

469373R1

SUPPORT ASSY.

STANDARD, straight, 12 in.

1шт.

1

487296R1

STANDARD, straight, 16 in., for units B, C, E, H, K and L

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt set

1шт.

2

469374R1

SUPPORT ASSY.

STANDARD, offset

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 C-Z hex-soc-hd ov-pt set

1шт.

3

469372R1

DISC,13"

DISK, 13 in.

1шт.

3

487298R1

DISC

DISK, 14 in., for units B, C, E, H, K and L

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 C-Z hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

4

468009R1

RETAINER

HOUSING, bearing, half open

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

120376

NUT,5/16"-18, G5

6шт.

5

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING, ball

1шт.

6

468008R1

COVER

HOUSING, bearing, closed half

1шт.

6

487081R1

COVER

HOUSING, bearing, closed half, for units B, C, E, H, K and L

1шт.

Выбрано товаров: 17
