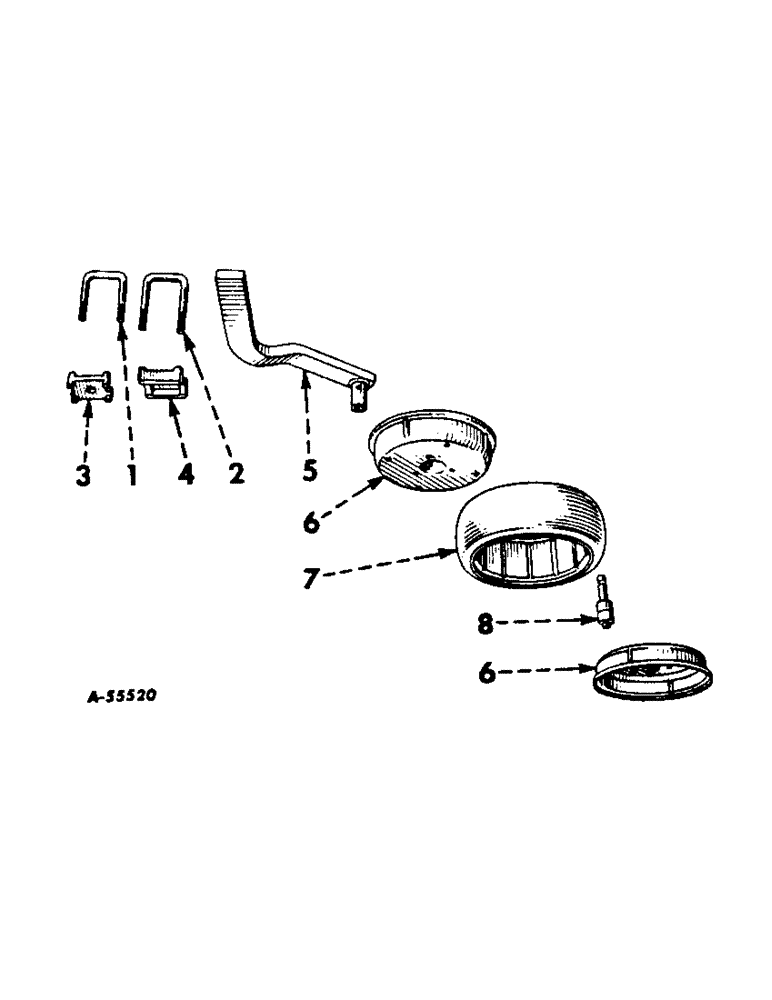

Запчасти Case IH 153 (AP-26) - GAUGE WHEEL, FOR UNITS A THRU V, X, Y AND Z

1

522572R2

BOLT,U, 1/2" - 13 x 3 3/16"

U-BOLT, standard

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

Not used in this application

1шт.

3

522571R2

BLOCK

standard clamp, for units A thru E, H thru L, P, Q, U, X, Y and Z

2шт.

3

487242R1

BLOCK

standard clamp, for units F, G, M, N, R, S and T

2шт.

4

Not used in this application

1шт.

5

526766R11

SUPPORT ASSY.

STANDARD ASSY, LH, for units B, C, E, J, K, L, P, Q and U

1шт.

5

526767R11

SUPPORT ASSY.

STANDARD ASSY, RH, for units B, C, E, J, K, L, P, Q and U

1шт.

5

492842R1

SUPPORT ASSY.

STANDARD ASSY, LH, for units A, D, H, X, Y and Z

1шт.

5

492843R1

SUPPORT ASSY.

STANDARD ASSY, RH, for units A, D, H, X, Y and Z

1шт.

5

542150R2

SUPPORT ASSY.

STANDARD ASSY, left, for units F, G, M, N, R, S and T

1шт.

5

483274R92

SUPPORT ASSY.

STANDARD ASSY, for square beams, for unit H

1шт.

5

546008R1

SUPPORT ASSY.

STANDARD ASSY, right, for units F, G, M, N, R, S and T

1шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 C-Z hex-soc-hd f-pt set

1шт.

5

58638C1

STANDARD ASSY, heavy duty

1шт.

22226R1

SET SCREW,Hex Soc, 3/8"-16 x 7/16"

SCREW, 3/8-16 x 7/16 znp hex-soc-hd ov-pt set

1шт.

6

526768R1

WHEEL

RIM, gauge wheel

4шт.

18473R1

SCREW,Hex, 5/16"-18 X 5/8", G2

BOLT, 5/16-18 x 5/8 C-Z hex-hd mach

14шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

120376

NUT,5/16"-18, G5

14шт.

6

465233R1

WHEEL

DISK, wheel, heavy duty

1шт.

6

465234R1

WHEEL

DISK W/VALVE HOLE, wheel, heavy duty

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

7

516492R1

TYRE/TIRE

TIRE, 4 x 12 semi-pneumatic

2шт.

8

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING ASSY

2шт.

8

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING ASSY, ball, heavy duty

1шт.

465235R1

RETAINER

HOUSING, bearing open half, heavy duty

1шт.

465236R1

COVER

HOUSING, close half, heavy duty

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

5шт.

465466R1

WASHER, 3/8 ext-tooth lock

5шт.

120377

NUT,3/8" - 16, Gr 5

5шт.
