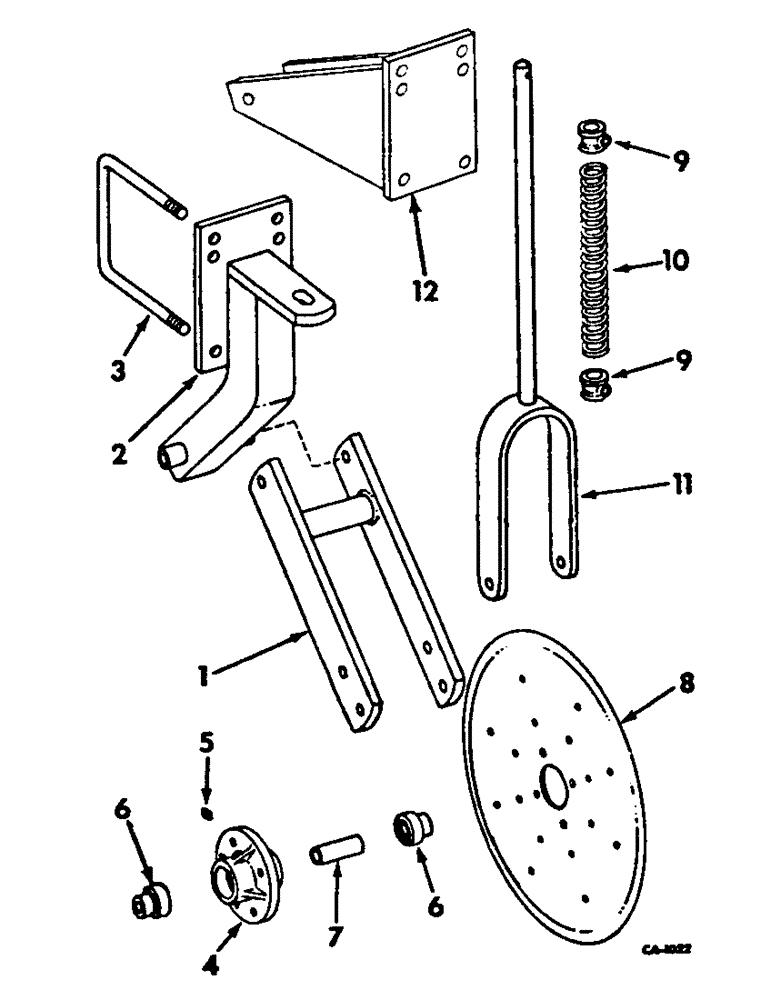

Запчасти Case IH 153 (AP-23) - ROLLING GUIDE FIN, FLEXIBLE
№
Артикул
Название
Примечание
Количество
1
492971R1
FRAME ASSY, guide fin, standard tooling
1шт.
1
490161R1
FRAME
ASSY, guide fin, vebra shank tooling
1шт.
271723
SNAP RING,Hex, 5/8" - 11 x 2", Gr 5
SCREW, 5/8-11 x 2 znd hex-hd cap
4шт.
17927R1
BOLT,Hex, 5/8" - 11 x 7", Gr 2
SCREW, 5/8-11 x 7 hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
5шт.
19959R1
BOLT,Hex, 3/4" - 10 x 7", Gr 5
SCREW, 3/4-10 x 7 hex-hd cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
1шт.
2
492974R1
BRACKET ASSY, guide fin, standard tooling
1шт.
3
1250812C1
U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L
bracket att, 5 x 7 frame
2шт.
3
1250813C1
U-BOLT
bracket att, 7 x 7 frame
2шт.
3
492963R1
BOLT,5/8" - 11 x 5 1/4"
U-BOLT, bracket att, 4 x 6 frame
2шт.
4
478433R1
HUB
guide fin
1шт.
5
86636814
LUBE NIPPLE,1/4"-28 x .52" lg
FITTING, 1/4-28 NF2 str lub
1шт.
6
ST503
BALL BEARING,0.629" ID x 47" OD x 0.5512"
BEARING ASSY, ball
2шт.
7
478435R1
SPACER
brg
1шт.
8
478436R1
DISC
BLADE, rolling guide fin
1шт.
180124
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
SCREW, 3/8-16 x 1-1/4 znd hex-hd cap
4шт.
20803R1
WASHER
13/32 x 1 x 11 ga C-Z
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
9
PO2041X
COLLAR
W/SET SCREW, pressure rod
2шт.
21803R1
SET SCREW,1/2" - 13 x 5/8", Steel
SCREW, 1/2-13 x 5/8 C-Z sq-hd
2шт.
10
SA2017
SPRING
pressure
1шт.
11
490159R1
YOKE
ASSY, pressure rod
1шт.
20340R1
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
12
492981R1
BRACKET ASSY, guide fin, vibra shank tooling
1шт.
21695R1
BOLT,Hex, 5/8" - 11 x 5 3/4", Gr 5
5/8-11 x 5-3/4 znd hex-hd mach
4шт.
19823R1
BOLT,Hex, 5/8" - 11 x 7", Gr 5
5/8-11 x 7 znd hex-hd mach
4шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
4шт.
21130R1
BOLT,Hex, 5/8" - 11 x 9", Gr 5
SCREW, 5/8-11 x 9 znd hex-hd cap
4шт.
Выбрано товаров: 34
