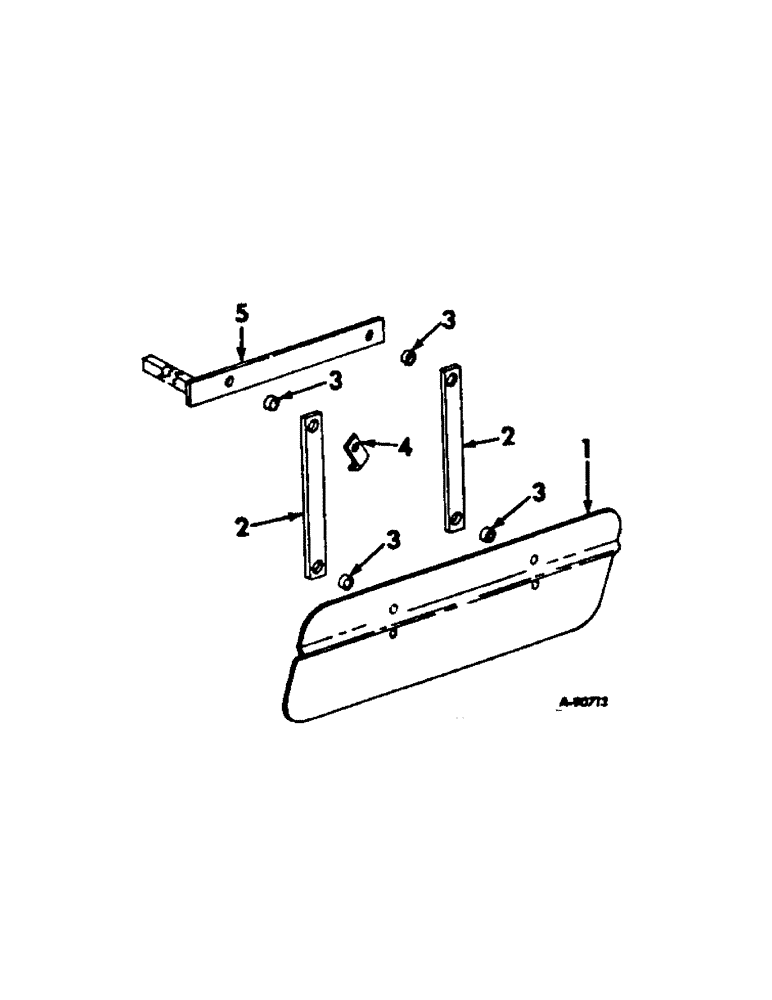

Запчасти Case IH 153 (AP-22) - OUTER SHIELD, FOR UNITS A, B, D, E, H, K, L, U, X, Y AND Z

1

526319R1

SHIELD

LH

1шт.

1

526320R1

SHIELD

RH

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

2

510754R1

LINK, pivot

4шт.

3

512836R1

WASHER

BUSHING, pivot link

8шт.

4

515217R1

SUPPORT

CLIP, shield adjusting

2шт.

5

483269R91

SUPPORT ASSY, outer shield

1шт.

5

486388R1

SUPPORT ASSY, for units A, B, E, K, L and U

2шт.

483255R1

CAP

extension

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

2шт.

5

486390R1

SUPPORT

ASSY, for units A, B, E, U, X, Y and Z

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 C-Z hex-hd mach

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

136857

WASHER,Ext Tooth, 7/16"

7/16 C-Z ext-tooth lock

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.
