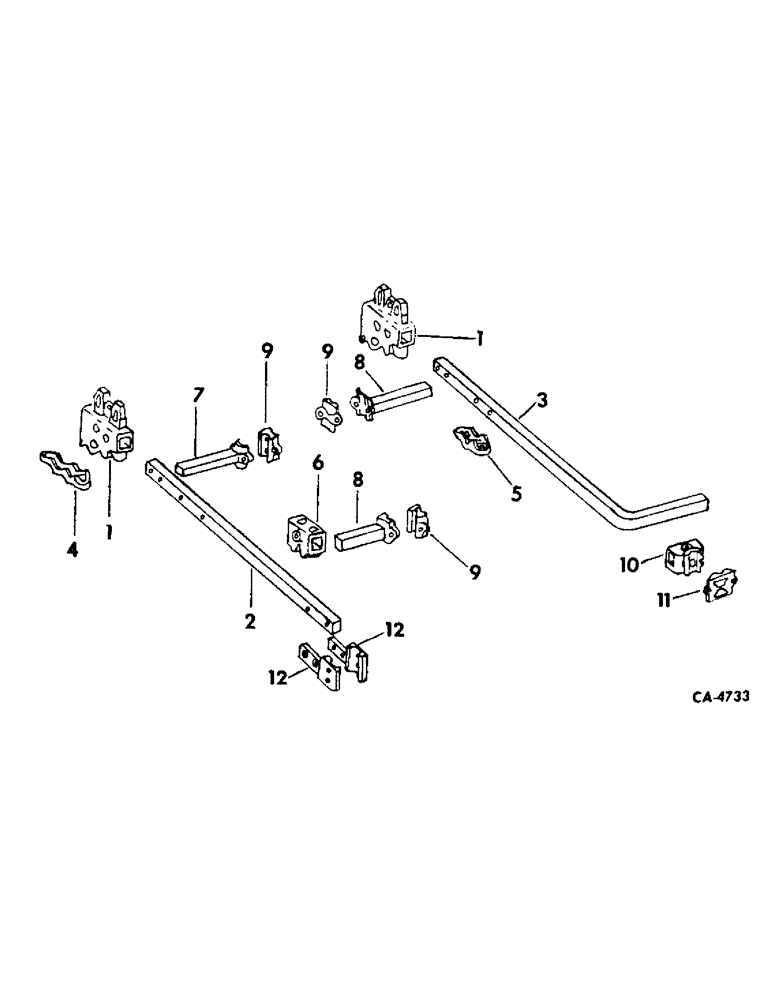

Запчасти Case IH 153 (AP-21) - TOOLING EQUIPMENT, FOR WIDE ROW CORN AND COTTON CULTIVATORS, 1972 AND SINCE

1

542040R1

CLAMP

tool bar attaching, one per parallel linkage

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 znd hex-hd mach, two per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp 1/2"-13, G5

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 3 used w/double cap lamp and 2 used w/single cap clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga. znd, 1 per 271725 screw

1шт.

2

57380C1

BAR, straight tool, one per inner row

1шт.

3

483258R2

BAR, bent tool, 2 for outer rows

1шт.

4

542039R1

CLAMP

double cap, one per inner row

1шт.

5

547750R1

CLAMP

cap (use as required)

1шт.

6

542995R1

CLAMP

sq. tool bar extension (use as required)

1шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set, 1 per clamp

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

SCREW 5/8 x 3 znd hex-hd cap, 2 per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga. znd, 2 per clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per clamp

1шт.

7

30791BA

EXTENSION

14-1/8 in. tool bar (use as required)

1шт.

8

30790BA

EXTENSION

8-5/8 in. tool bar (use as required)

1шт.

9

510918R1

CLAMP

CAP, extension (use as required)

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 znd sq-hd mach, 2 per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per cap

1шт.

10

544221R1

CLAMP

sq tool bar standard (use as required)

1шт.

26143R1

SCREW, 3/4-10 x 1-1/4 znd sq-hd dog-pt set, 1 per clamp

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach, 2 per clamp

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 2 per clamp

1шт.

11

544222R1

CAP

round standard, one per clamp

1шт.

12

542999R1

CLAMP

half, 2 per straight tool bar

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap, 2 per straight tool bar

1шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2-13 x 2-3/4 znd hex-hd cap, 2 per straight tool bar

1шт.

120384

WASHER,1/2"

LOCK, , 1 per screw 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per screw 1/2"-13, G5

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex., 1 per screw

1шт.
