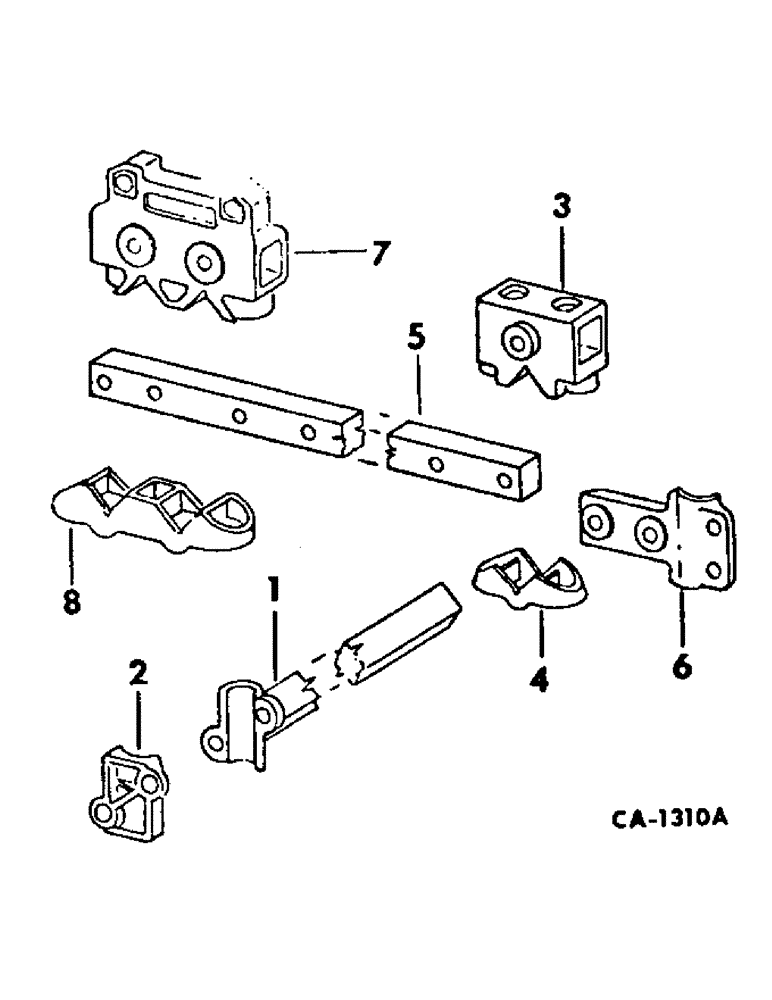

Запчасти Case IH 153 (AP-20) - TOOLING EQUIPMENT, FOR NARROW ROW CORN AND COTTON CULTIVATORS, BUILT 1972 AND SINCE
№
Артикул
Название
Примечание
Количество
1
30790BA
EXTENSION
8-5/8 in. tool bar (use as required)
1шт.
1
30791BA
EXTENSION
14-1/8 in. tool bar (use as required)
1шт.
1
542091R1
COVER
EXTENSION, 11-5/8 in. tool bar (use as required)
1шт.
1
542041R1
EXTENSION
11-5/8 in. tool bar (use as required) (for unit Y)
1шт.
2
510918R1
CLAMP
CAP, extension, one per extension
1шт.
18956R1
BOLT,5/8" - 11 x 2 1/2", Gr 2
5/8 x 2-1/2 znd sq-hd mach, 2 per cap
1шт.
3
542995R1
CLAMP
sq tool bar extension (use as required)
1шт.
26143R1
SCREW, 3/4-10 x 1-1/4 znd sq-hd dog pt set, 1 per clamp
1шт.
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
SCREW, 5/8 x 3 znd hex-hd cap, 2 per clamp
1шт.
589068R1
WASHER
21/32 x 1-1/4 x 11 ga znd, 2 per clamp
1шт.
4
547750R1
CLAMP
CAP, clamp
1шт.
5
57380C1
BAR, straight tool 42 in.
1шт.
5
57382C1
BAR, inner tool 26-3/4 in.
1шт.
5
57381C1
BAR, outer tool 30 in. (use as required)
1шт.
6
542999R1
CLAMP
half, 2 per straight tool bar
1шт.
413-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
SCREW, 5/8-11 x 2-3/4 znd hex-hd cap, 2 per clamp set
1шт.
180188
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
SCREW, 1/2-13 x 2-3/4 znd hex-hd cap, 2 per clamp set
1шт.
120384
WASHER,1/2"
LOCK, , 2 per clamp set 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 1 per screw 1/2"-13, G5
1шт.
7
542040R1
CLAMP
tool bar attaching, one per parallel linkage
1шт.
18476R1
BOLT,Hex, 1/2"-13 x 2 1/2", G2
1/2 x 2-1/2 znd hex-hd mach, 2 per clamp
1шт.
120384
WASHER,1/2"
LOCK, , 2 per clamp 1/2"
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, , 2 per clamp 1/2"-13, G5
1шт.
426-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 3 used w/double cap clamp and 2 used w/single cap clamp
1шт.
589068R1
WASHER
21/32 x 1-1/4 x 11 ga. znd, 1 per 271725 screw
1шт.
8
542039R1
CLAMP
CAP, double clamp, one per inner row
1шт.
Выбрано товаров: 29
