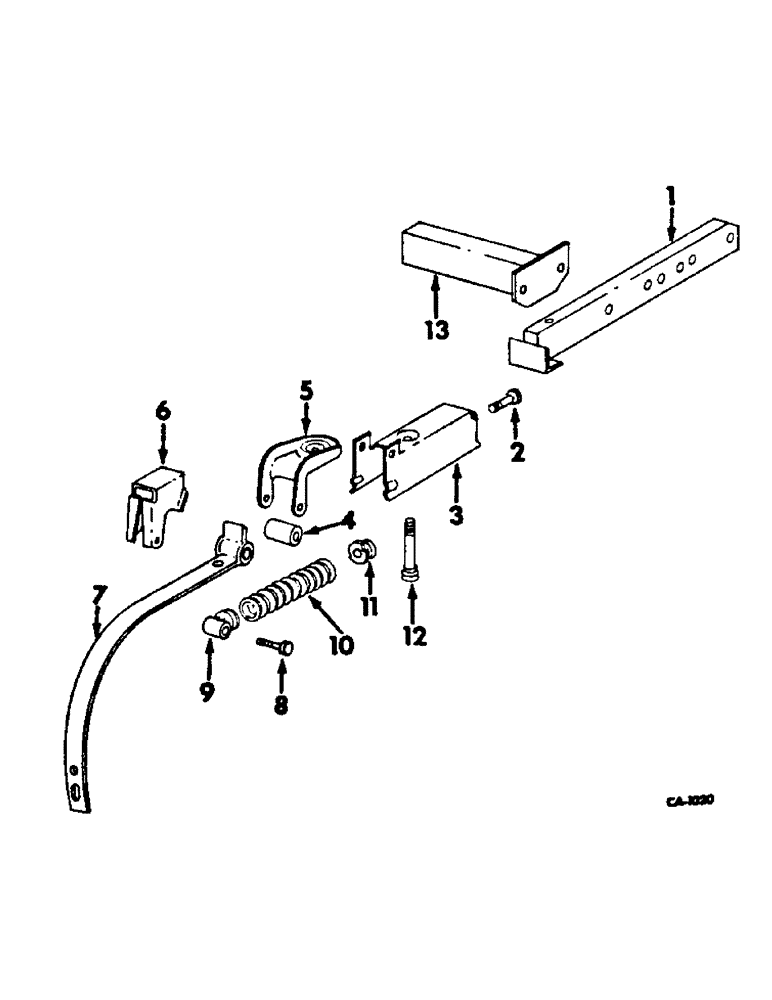

Запчасти Case IH 153 (AP-17) - TOOLING EQUIPMENT, VIBRA SHANK TOOLING, 1970 TO 1976, FOR UNITS F, G, M, N, R, S, T AND V

1

542138R2

BEAM

ASSY, 7 used for unit F, 9 used for unit G, 13 used for unit S

1шт.

1

546048R1

BEAM

ASSY, 3 used for unit V, 5 used for unit M, 7 used for unit N, 9 used for units R and T

1шт.

271728

SHAFT,Hex, 5/8" - 11 x 3 1/4", Gr 5

SCREW, 5/8-11 x 3-1/4 znd hex-hd cap

4шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 C-Z hex-hd cap (use as required)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Use as required) 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex. (use as required)

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap (use as required)

1шт.

2

597671R1

BOLT,1/2" - 13 x 2.06", Gr 20

shank bracket, one per shank

1шт.

3

811357C1

SUPPORT

BRACKET, one per shank

1шт.

4

811354C1

BUSHING

shank, on per shank

1шт.

5

811353C1

CLAMP

top, one per shank

1шт.

20835R1

NUT,1/2"-13, G8

1/2-13 C-Z hex., 1 per clamp

1шт.

811352C1

BOLT,1/2" - 13 x 3 1/2"

1/2-13 x 3-1/2 hex-hd type 8, 1 per clamp

1шт.

6

591542R1

BRACKET

CLAMP, one per shank

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap, 1 per clamp

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per clamp 1/2"-13, G5

1шт.

7

591549R1

SHANK

11 used for unit V, 19 used for unit F, 21 used for unit M, 25 used for unit G, 31 used for unit N, 37 used for unit S, 41 used for unit R

1шт.

8

591545R1

PIN,13.08mm OD x 61.98mm L

special, one per shank

1шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), , 1 per pin 3/16" x 3/4"

1шт.

9

591544R1

PLUG

spring, one per shank

1шт.

21148R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 3/8", Gr 2

BOLT, 7/16 x 1-3/8 no. plow hd sweep, 2 per plug

1шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga cad, 1 per plug

1шт.

NLS

NO LONGER SERVICED

NUT, 7-16-14 C-Z hex., 2 per plug

1шт.

10

591546R1

SPRING

one per shank

1шт.

11

591547R1

PLUG

spring, one per shank

1шт.

12

591540R2

BOLT,Spcl, 1/2" - 13 x 4", Gr 5

BOLT, 1/2-13 x 4 C-Z special, one per shank

1шт.

9413956

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 PHC hex. lock, 1 per bolt

1шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 znd ext-tooth lock, 2 per bolt

1шт.

13

542140R1

BRACKET ASSY, attaching pipe, 12 used for unit F, 16 used for unit G, 24 used for unit S

1шт.

13

546052R1

BRACKET

ASSY, attaching pipe, 4 used for unit V, 8 used for unit M, 12 used for unit N, 16 used for units R and T

1шт.

13

546054R1

BRACKET ASSY, attaching pipe, 4 used for unit V, 8 used for unit M, 12 used for unit N, 16 used for units R and T

1шт.
