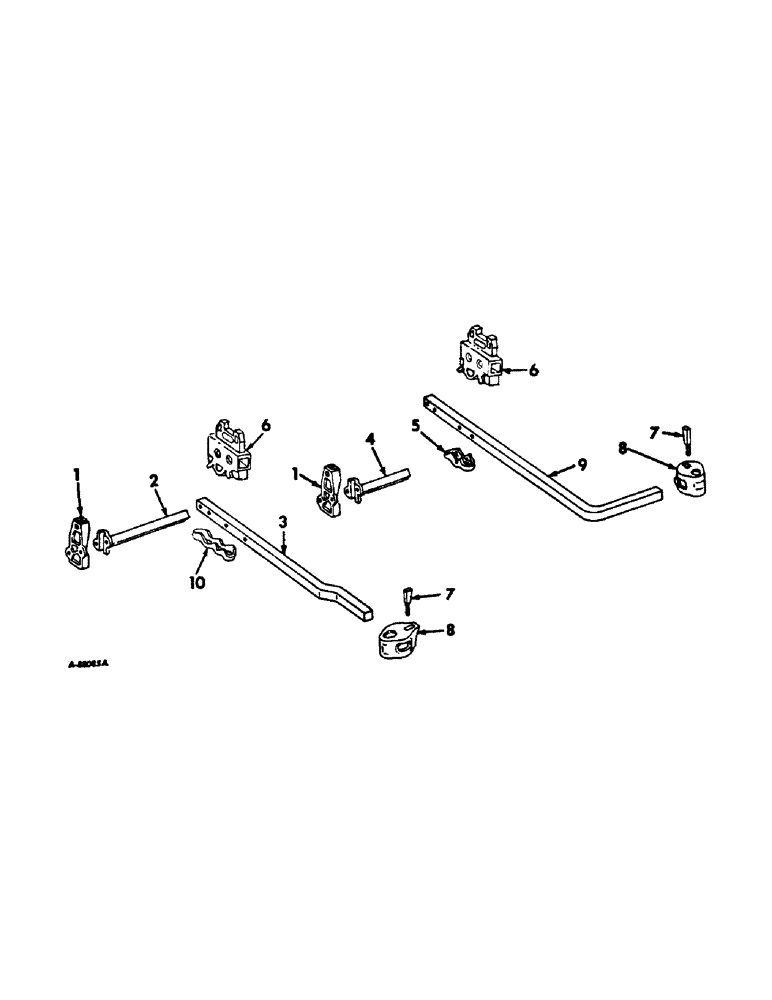

Запчасти Case IH 153 (AP-16) - TOOLING EQUIPMENT, FOR UNITS B, E AND U, BUILT UP TO 1972

1

483255R1

CAP

extension, 12 used for 6-row, 16 used for 8-row, 24 used for 12-row

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, 1 per cap

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 per cap

1шт.

2

30790BA

EXTENSION

tool bar

2шт.

3

486391R1

BAR, inner tool, 5 used for 6-row, 7 used for 8-row, 11 used for 12-row

1шт.

4

542041R1

EXTENSION

tool bar, 10 used for 6-row, 14 used for 8-row, 22 used for 12-row

1шт.

5

547750R1

CLAMP

tool bar attaching, will work for 28256BB

2шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8 x 2-1/2 znd hex-hd cap, 2 per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, 2 per clamp

1шт.

6

542040R1

CLAMP

tool bar attaching, 7 used for 6-row, 9 used for 8-row, 13 used for 12-row

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach, 2 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp 1/2"-13, G5

1шт.

7

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 7 used for 6-row, 9 used for 8-row, 13 used for 12-row

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

8

522557R2

CLAMP

std, 7 used for 6-row, 9 used for 8-row, 13 used for 12-row

1шт.

9

486392R1

BAR, outer tool

2шт.

10

542039R1

CLAMP

cap, 5 used for 6-row, 7 used for 8-row, 11 used for 12-row

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8 x 2-1/2 znd hex-hd cap, 3 per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, 3 per clamp

1шт.
