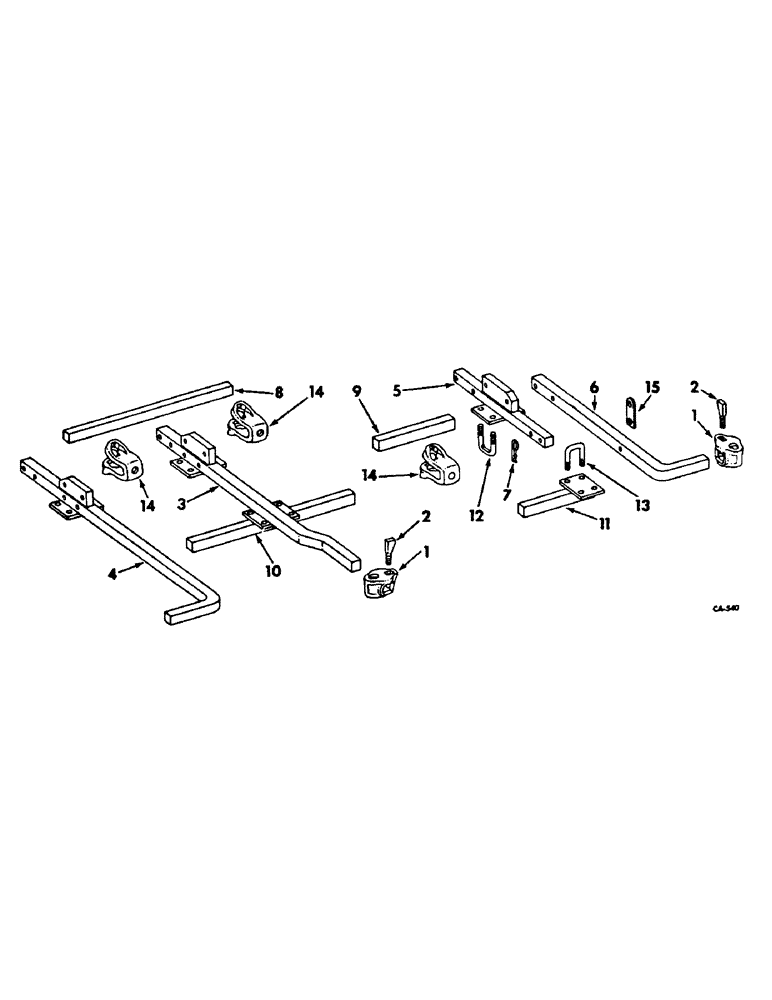

Запчасти Case IH 153 (AP-15) - TOOLING EQUIPMENT, FOR UNIT C, 1969 TO 1972

1

522557R2

CLAMP

tool bar standard

9шт.

2

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge

9шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

9шт.

3

493282R1

BAR ASSY, tool

3шт.

4

493286R1

BAR ASSY, outer tool

1шт.

5

541297R1

BAR ASSY, outer tool

1шт.

6

541296R1

BAR, outer bent tool

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8 x 3-3/4 znd hex-hd cap

1шт.

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

Q1421

PIN, 5/8 x 3-1/8 std-hd

1шт.

7

517843R1

COTTER PIN

PIN, quick attachable cot

1шт.

8

493288R1

BAR, front cross

7шт.

9

493289R1

BAR, outside front

2шт.

10

493290R1

BAR ASSY, rear cross

7шт.

11

493293R1

BAR ASSY, outer rear

2шт.

12

493295R1

U-BOLT, 1-1/2 sq bar

18шт.

13

468689R1

U-BOLT, 1/3/8 sq bar

18шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

72шт.

14

519475R2

CLAMP

tool bar for 5/8 x 1-1/2 flt std

32шт.

137821

SET SCREW,Sq Hd, 3/4" - 10 x 2"

SCREW, 3/4-10 x 2 sq-hd dog-pt set

32шт.

280954

NUT,3/4"-10, G5

32шт.

15

541294R1

STRAP

1шт.
