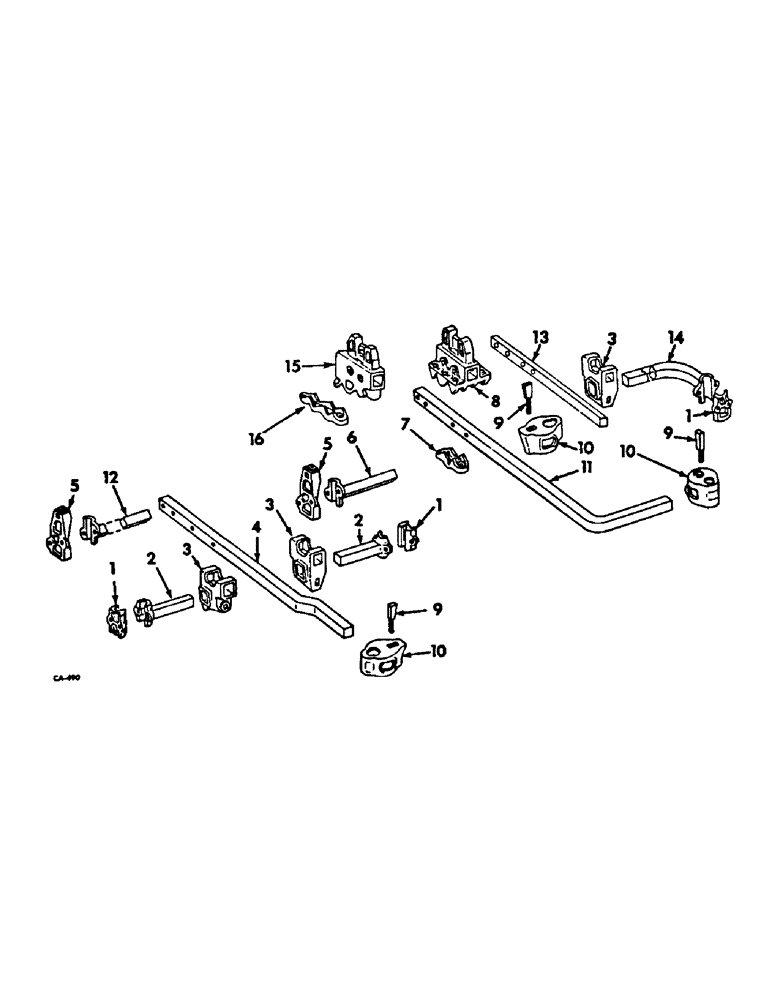

Запчасти Case IH 153 (AP-13) - TOOLING EQUIPMENT, FOR UNITS A, D, H, K AND L, 1969 TO 1972

1

1779BB

CLAMP

CAP, tool bar extension, 8 used for 4-row wide, 11 used for 6-row, 15 used for 8-row

1шт.

29822B

BOLT

1/2 x 2-3/4 sq-hd mach, 2 per cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per cap 1/2"-13, G5

1шт.

2

28236BB

CLAMP

EXTENSION, tool bar, 8 used for 4-row wide, 10 used for 6-row, 14 used for 8-row

1шт.

3

522556R1

CLAMP

extension tool bar, 8 used for 4-row wide, 11 used for 6-row, 15 used for 8-row

1шт.

4

483256R2

TOOL BAR, center, 1 used for 4 row wide

1шт.

4

486391R1

TOOL BAR, inner, 3 used for 4-row narrow

1шт.

4

483257R2

TOOL BAR, offset, 4 used for 4-row wide, 5 used for 6-row, 7 used for 8-row

1шт.

5

483255R1

CAP

extension, 8 used for 4-row wide and narrow, 12 used for 6-row, 16 used for 8-row

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z hex-hd mach, 1 per cap

1шт.

18956R1

BOLT,5/8" - 11 x 2 1/2", Gr 2

5/8 x 2-1/2 C-Z sq-hd mach, 2 per cap

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 per cap

1шт.

6

30790BA

EXTENSION

tool bar

2шт.

7

547750R1

CLAMP

cap, will work for 28256BB, 2 used for 4-row narrow and 8-row, 4 used for 4-row wide, 12 used for 6-row

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2 type 5, 2 per clamp

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga C-Z, 2 per clamp

1шт.

8

483254R3

CLAMP, tool bar attaching, 5 used 4 and 6-row, 7 used 8-row

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach, 2 per clamp

1шт.

120384

WASHER,1/2"

LOCK, , 2 per clamp 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 2 per clamp 1/2"-13, G5

1шт.

9

27585BA

BOLT,Wedge, 1/2" - 13 x 4 1/2", Long

wedge, 13 used for 4-row, 19 used for 6-row, 25 used for 8-row

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per bolt 1/2"-13, G5

1шт.

10

522557R2

CLAMP

std, 5 used for 4-row wide and narrow, 8 used for 6-row, 10 used for 8-row

1шт.

11

483258R2

TOOL BAR, bent, 2 used for 4-row wide, 1 used for 6-row and 8-row

1шт.

11

486392R1

TOOL BAR, outer, 2 used for 4-row narrow

1шт.

12

30927B

EXTENSION

tool bar, 6 used for 4-row narrow, 10 used for 6-row, 14 used for 8-row

1шт.

13

486899R1

BAR, right hand, 1 used for 6-row and 8-row

1шт.

14

487060R1

CLAMP, curved tool bar, 1 used for 6-row and 8-row

1шт.

15

542040R1

CLAMP

tool bar attaching, outer, 2 used for 8-row, 4-row and 6-row wide, 5 used for 4-row narrow

1шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

5/8 x 2-1/2 znd hex-hd mach, 2 per clamp

1шт.

84057

LOCK WASHER,M16

WASHER, LOCK, (5/8"), 2 per clamp M16

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 5/8-11 C-Z hex., 2 per clamp

1шт.

16

542039R1

CLAMP

cap inner, 3 used for 4-row narrow, 6 used for 4-row wide, 10 used for 6-row wide, 14 used for 8-row

1шт.

18827R1

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2

5/8 x 3-1/2 znd hex-hd mach, 9 used for 4-row narrow, 18 used for 4-row wide, 42 used for 8-row

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga, 18 used for 4-row, 42 used for 8-row

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 znd hex-hd cap, 9 used for 4-row narrow

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 18 used for 4-row, 42 used for 8-row

1шт.

16964R91

FITTING

1/4-28 NS 90 deg angle lub, lower link pivot bolt next to guide fin

1шт.
