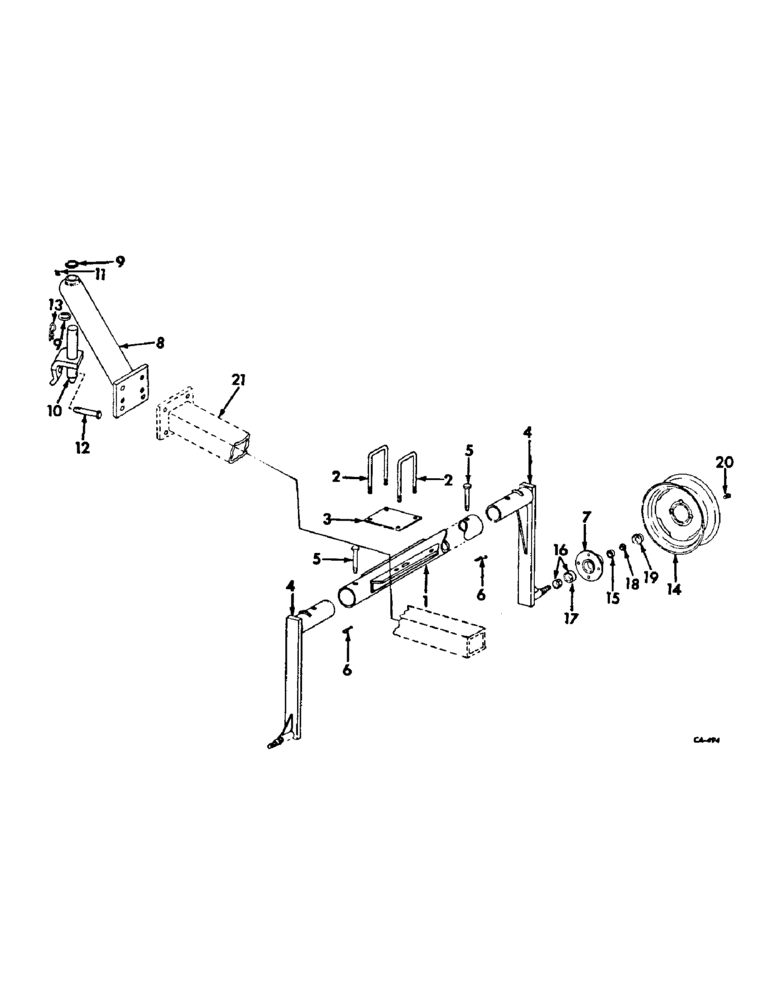

Запчасти Case IH 153 (AP-10) - TRANSPORT ATTACHMENT, UP TO 1972, FOR UNITS A, B, C AND G, ALL UNIT E

1

492986R1

TUBE ASSY, transport

1шт.

2

492989R1

BOLT

U-BOLT, transport tube, for unit A, B, C, D and G

2шт.

2

493839R1

BOLT,7/8" - 9 x 9"

U-BOLT, transport tube, for unit E

2шт.

21224R1

WASHER

29/32 x 1-1/2 x 7 ga C-Z

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

493840R1

PLATE

reinforcing, for units A, B, C, D and G

1шт.

3

493838R1

PLATE

reinforcing, for unit E

1шт.

4

542311R1

AXLE

ASSY, wheel

2шт.

5

486220R1

PIN

transport tube pointed

2шт.

6

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

7

472220R21

HUB

W/FITTING, wheel

2шт.

443804

SCREW, 1/4-28 x 1-4 C-Z stl-ov-pt hdls set

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga C-Z

2шт.

69442D

NUT

slt-hex.

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

8

492990R1

TUBE ASSY, hitch, built, Serial Range: up-1972

1шт.

8

542314R1

TUBE

ASSY, hitch, built 1972 and since

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

21719R1

WASHER

21/32 x 2-3/4 x 16 ga

1шт.

9

483587R1

WASHER

pivot, used w/492990R1 hitch

2шт.

10

483588R91

BRACKET ASSY, pivot, built, Serial Range: up-1972

1шт.

10

542316R1

BRACKET

ASSY, pivot, built 1972 and since

1шт.

11

66584D

FITTING

3/16 drive type str lub, used w/492990R1 hitch

1шт.

12

651866R1

PIN, pointed, used w/492990R1 hitch

1шт.

12

542319R1

PIN

pointed, used w/542314R1 hitch

1шт.

517843R1

COTTER PIN

PIN, quick attachable cotter

1шт.

13

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), , Used w/492990R1 hitch 5/16" x 2 1/2"

1шт.

13

472865R91

PIN ASSY, used w/542314R1 hitch

1шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

1шт.

14

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 x 5 J, recommended tire size 8.50 x 14, 8.00 x 14, 7.50 x 14 or 7.00 x 14

1шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

17

651817R1

BEARING CUP

BEARING, inner cup

2шт.

17

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

18

651814R1

BEARING CUP

BEARING, outer cup

2шт.

19

651194R1

CAP

wheel brg hub

2шт.

20

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical hd

8шт.

21

TUBE ASSY, refer to frame unit

1шт.

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

472222R1

SLEEVE

oil seal wear

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub wheel hub

2шт.
