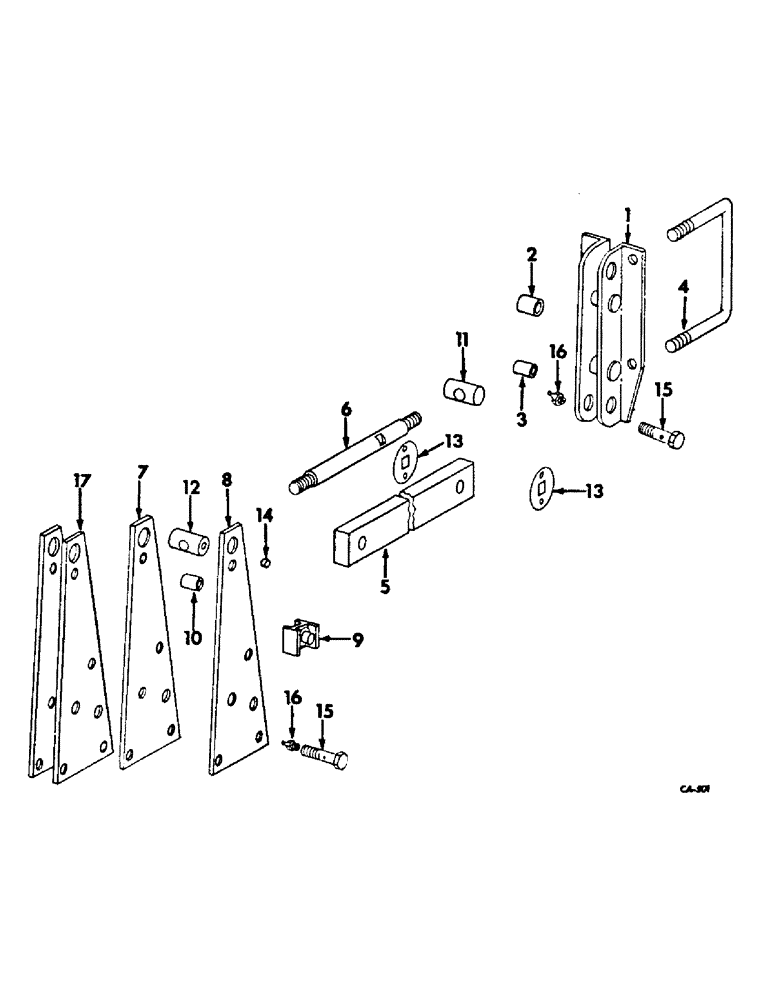

Запчасти Case IH 153 (AP-08) - PARALLEL LINKAGE

1

492936R91

BRACKET

ASSY, head, for 7 in. frame

1шт.

1

492960R91

BRACKET

ASSY, head, for 6 in. frame, 3 used for 2-row, 5 used for 4-row, 7 used for 6-row, 9 used for 8-row, 13 used for 12-row

1шт.

2

492939R1

SPACER

lower, 1 per head bracket, for units A thru E, G thru N, P thru U, X, Y and Z

1шт.

24541R1

RIVET, 5/8 x 3 f-hd solid, 1 per spacer

1шт.

3

492941R1

SPACER

upper, 1 per head bracket

1шт.

25434R1

RIVET, 1/2 x 2-3/4 f-hd, 1 per spacer

1шт.

4

492963R1

BOLT,5/8" - 11 x 5 1/4"

U-BOLT, 4 x 6 frame

1шт.

4

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

5 x 7 frame

1шт.

4

1250813C1

U-BOLT

1шт.

U-BOLT, 7 x 7 frame, 4 for unit M and V, 8 for units F and H thru L and N, 12 for units A, G, R, T and U, 16 for units B, C and D, 14 for unit X, 16 for unit Z, fold flex frame, 18 for unit Z, rigid frame, 18 for unit Y, 20 for unit S, 24 for units E and Q

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 per u-bolt

1шт.

5

483281R1

BAR, lower parallel link, up to 1971, 1 per head bracket

1шт.

5

545405R1

BAR

lower parallel link, 1971 and since, 1 per head bracket

1шт.

6

523448R1

ROD

upper link, 1 per head bracket

1шт.

7

546046R1

PLATE

tool bar attaching tapped, replaces 483282R2, for vibra shank tooling, 1 per head bracket

1шт.

7

483282R3

PLATE, tool bar attaching tapped, for standard tooling, 1 per head bracket

1шт.

8

546047R1

PLATE, tool bar attaching not tapped, replaces 483283R2, for vibra shank tooling, 1 per head bracket

1шт.

8

483283R3

PLATE, tool bar attaching no tapped, for standard tooling, 1 per head bracket

1шт.

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

SCREW, 5/8-11 x 2-3/4 znd hex-hd cap, 2 per plate

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, , 2 per plate 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex., 2 per plate

1шт.

9

483287R2

BLOCK

gang stop, 1 per attaching plate

1шт.

10

483284R1

SPACER

1 per head bracket

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 znd hex-hd mach, 1 per spacer

1шт.

120384

WASHER,1/2"

LOCK, , 1 per spacer 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 1 per spacer 1/2"-13, G5

1шт.

11

483285R1

PIVOT ASSY.

SWIVEL, upper link front, 1 per head bracket

1шт.

12

483286R1

PIVOT ASSY.

SWIVEL, upper link rear, 1 per head bracket

1шт.

13

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

lower pivot brg, 2 per head bracket

1шт.

14

522591R1

PLUG

bolt locking, 1 per head bracket

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach, 1 per plug

1шт.

15

487061R2

BOLT,Hex, 3/4" - 10 x 3"

lower link pivot front, up to 1971, 5 used for 4-row, 7 used for 6-row, 9 used for 8-row, 10 used for 4-row w/vibra shank, 13 used for 12-row, 14 used for 6-row w/vibra shank

1шт.

15

522543R2

BOLT,Hex, 3/4" - 10 x 2 3/4"

lower link pivot rear, up to 1971, 5 used for 4-row, 7 used for 6-row, 9 used for 8-row, 13 used for 12-row

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 per bolt

1шт.

15

545406R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3", Cl 1

BOLT, lower link pivot, 1971 and since, 2 per head bracket

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4-10 cad nylon NTU insert, 1 per bolt

1шт.

16

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str-dr-lub rear, replaces 110146R91, 1 per head bracket

1шт.

16

19700R91

FITTING

3/16 45 deg angle dr-lub front, replaces 110146R91, 1 per head bracket

1шт.

17

490170R2

BRACKET ASSY, for units A thru E and Q

2шт.

22222R1

SCREW, 3/4-10 x 2-1/2 C-Z sq-hd ov-pt set

2шт.

426897

JAM NUT,Jam, 3/4"-10, G5

3/4-10 C-Z hex. jam

2шт.
