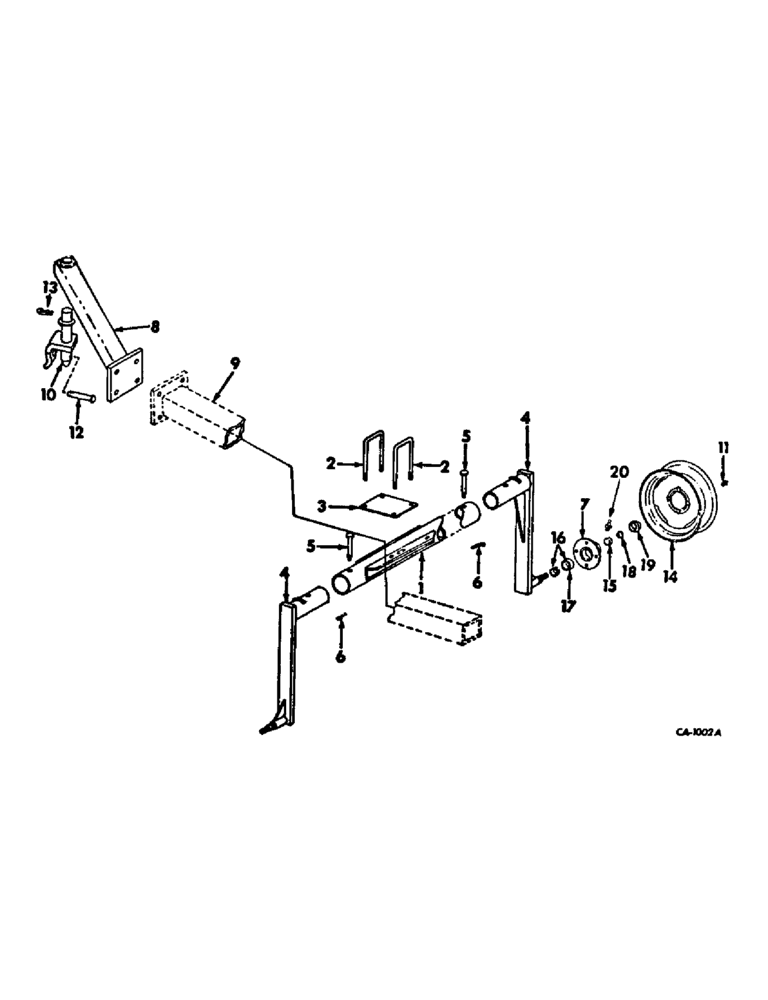

Запчасти Case IH 146 (AR-04) - TRANSPORT ATTACHMENT, FOR 6 AND 8 ROW CULTIVATOR

1

492986R2

TUBE ASSY, transport

1шт.

2

493839R1

BOLT,7/8" - 9 x 9"

U-BOLT, transport tube

2шт.

21224R1

WASHER

29/32 x 1-1/2 x 7 ga C-Z

4шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

3

493838R1

PLATE

reinforcing, 7 x 7

1шт.

541769R1

PIN

7/8 diameter

1шт.

4

542311R1

AXLE

ASSY, wheel

2шт.

5

486220R1

PIN

transport tube pointed

2шт.

6

517843R1

COTTER PIN

PIN, quick attachable cot.

2шт.

7

472220R21

HUB

W/SET SCREW, wheel

2шт.

446623

SCREW

1/4 x 1/4 c/pt znp hdl/s set

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga hard

2шт.

69442D

NUT

3/4-16 slt hex

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

8

542314R1

TUBE

ASSY, hitch

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

21719R1

WASHER

21/32 x 2-3/4 x 16 ga

1шт.

9

TUBE ASSY, refer to frame unit

1шт.

10

542316R1

BRACKET

ASSY, pivot

1шт.

11

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

conical hd

8шт.

12

542319R1

PIN

pointed

1шт.

13

473865R91

LINCH PIN

PIN ASSY

1шт.

20465R1

LOCK PIN,1/4" x 3 1/2", Slotted

Pin, 1/4" x 3 1/2", Slotted

1шт.

517843R1

COTTER PIN

PIN, quick attachable cot.

1шт.

14

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 inch, or

2шт.

14

455169R92

WHEEL

ASSY, 15 inch

2шт.

15

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

15

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

16

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

17

651817R1

BEARING CUP

BEARING, inner cup

2шт.

17

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

18

651814R1

BEARING CUP

BEARING, outer cup

2шт.

19

651194R1

CAP

wheel brg hub

2шт.

20

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28NF str lub

2шт.

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

472222R1

SLEEVE

oil seal wear

2шт.
