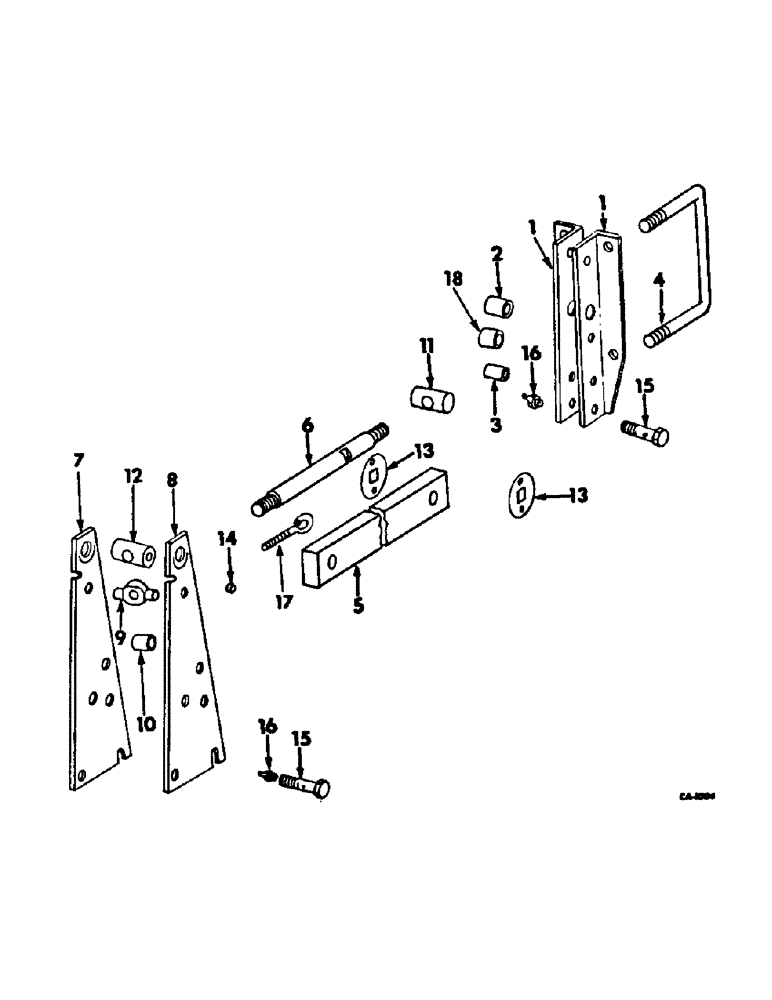

Запчасти Case IH 146 (AR-03) - PARALLEL LINKAGE

1

542322R2

ANGLE

hd bracket LH

1шт.

1

542323R2

ANGLE

hd bracket RH

1шт.

18812R1

BOLT,Hex, 1/2" - 13 x 3", Gr 2

1/2 x 3 type 1

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

18826R1

BOLT,Hex, 5/8"-11 x 3", G2

5/8 x 3 type 1

1шт.

19544R1

BOLT,Hex, 5/8"-11 x 3 1/4", G2

5/8 x 3-1/4 type 1

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 type 5

2шт.

18613R1

BOLT,Hex, 3/4"-10 x 3 1/4", G2

3/4 x 3-1/4 type 1

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4 cad p/t lock type 5

1шт.

2

492939R1

SPACER

lower

1шт.

3

492941R1

SPACER

middle

1шт.

4

542324R2

U-BOLT,U, 3/4" - 10 x 214.90mm

linkage, 16 for 8 row

1шт.

4

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT, linkage, 12 used w/6-row and 8 w/4-row

1шт.

280954

NUT,3/4"-10, G5

2 per u-bolt 3/4"-10, G5

1шт.

5

545405R1

BAR

lower parallel link

1шт.

6

523448R1

ROD

upper link

1шт.

7

487225R1

PLATE

tool bar tapped support

1шт.

8

487226R1

PLATE

tool bar not tapped support

1шт.

9

487235R2

PIVOT

trunnion

1шт.

10

483284R1

SPACER

1шт.

18811R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2 x 2-3/4 znd hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

11

483285R1

PIVOT ASSY.

SWIVEL, upper link front

1шт.

12

483286R1

PIVOT ASSY.

SWIVEL, upper link rear

1шт.

13

486998R1

WASHER,20.63mm ID x 76.2mm OD x 1.52mm Thk

lower pivot brg

2шт.

14

522591R1

PLUG

bolt locking

1шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

1шт.

21950R1

HEADED PIN,3/4" x 2 1/2"

PIN, 3/4 x 2-1/2 std-hd

1шт.

22944R1

PIN,1/4" x 1 1/8"

Split (Cotter), 1/4" x 1 1/8"

1шт.

15

545406R1

BOLT (SPREADER),Hex, 3/4" - 10 x 3", Cl 1

BOLT, lower link pivot

1шт.

24663R1

LOCK NUT,3/4"-10, G5

NUT, 3/4 cad p/t lock type 5

1шт.

16

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, 3/16 str dr lub rear

1шт.

16

19700R91

FITTING

3/16 45 deg angle dr lub front

1шт.

17

542321R1

BOLT,3/8" - 16 x 4"

hook

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

18

492949R1

SPACER

upper

1шт.
