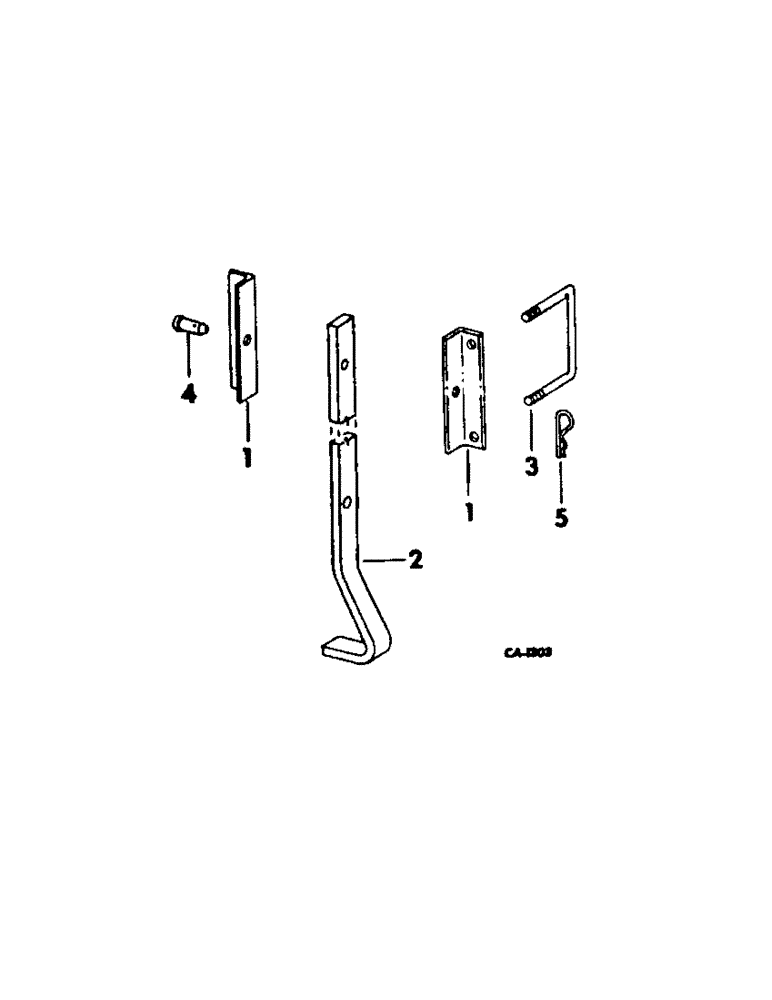

Запчасти Case IH 146 (AR-02[A]) - SUPPORT STAND FOR 4 AND 6 ROW CULTIVATOR

1

492493R3

TUBE ASSY, 5 x 7 x 250 in., for 6 row

1шт.

1

TUBE ASSY, main, 4 row, discontinued for service

1шт.

2

542299R1

SUPPORT

MAST ASSY, hitch

1шт.

22043R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 5

SCREW, 3/4-10 x 9-1/2 znd hex-hd cap, 4 used w/8-row

1шт.

21400R1

BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5

SCREW, 3/4-10 x 7-1/2 znd hex-hd cap, for 4 and 6 row

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

3

542302R1

BRACKET ASSY, hitch LH

1шт.

4

542303R1

BRACKET

ASSY, hitch RH

1шт.

5

493841R1

U-BOLT

for 8 row

4шт.

5

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, for 4 and 6 row

4шт.

23831R1

NUT,7/8"-9, G8

7/8-9 type 4 C-Z hex.

8шт.

6

462425R1

SPACER

upper link

1шт.

21184R1

BOLT,Hex, 3/4"-10 x 4 1/4", G2

3/4 x 4-1/4 znd hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

7

542306R1

PLATE

mast

1шт.

1

543108R2

ANGLE

2шт.

2

58673C1

STAND, support

1шт.

3

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

4шт.

4

542977R1

PIN, 5/8 pointed

4шт.

5

517843R1

COTTER PIN

PIN, quick attachable cot.

4шт.
