(AR-09) - THREE-POINT QUICK-ATTACHABLE HITCH CATEGORY III, FOR 6 AND 8 ROW CULTIVATOR

Запчасти Case IH 146 (AR-09) - THREE-POINT QUICK-ATTACHABLE HITCH CATEGORY III, FOR 6 AND 8 ROW CULTIVATOR

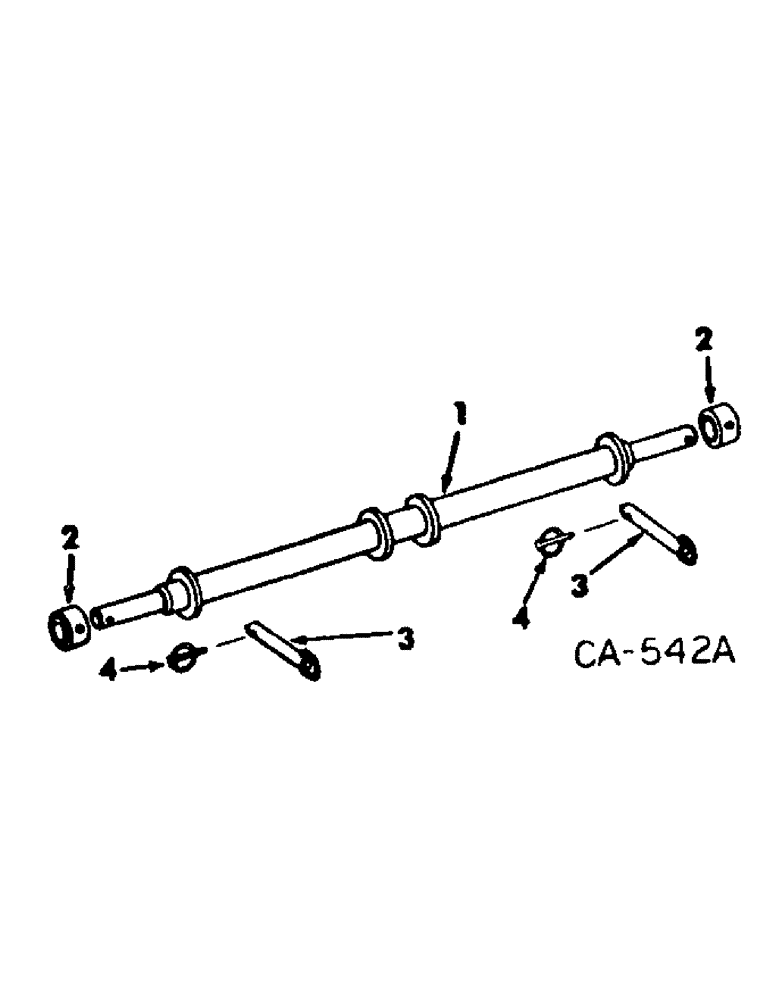

Схема запчастей Case IH 146 - (AR-09) - THREE-POINT QUICK-ATTACHABLE HITCH CATEGORY III, FOR 6 AND 8 ROW CULTIVATOR
1
3
2
3
2
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

490156R1

SPINDLE

ASSY, category III 3-pt hitch, used w/category III length spreader bar

1шт.

1

57233C1

SPINDLE

ASSY, category III, used w/category II length spreader bar

1шт.

2

401233R1

COLLAR

thrust

2шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

2шт.

3

113225C1

PIN

ASSY, hitch

2шт.

4

373025R91

PIN ASSY.

PIN ASSY, quick attachable snap

2шт.

Выбрано товаров: 6
