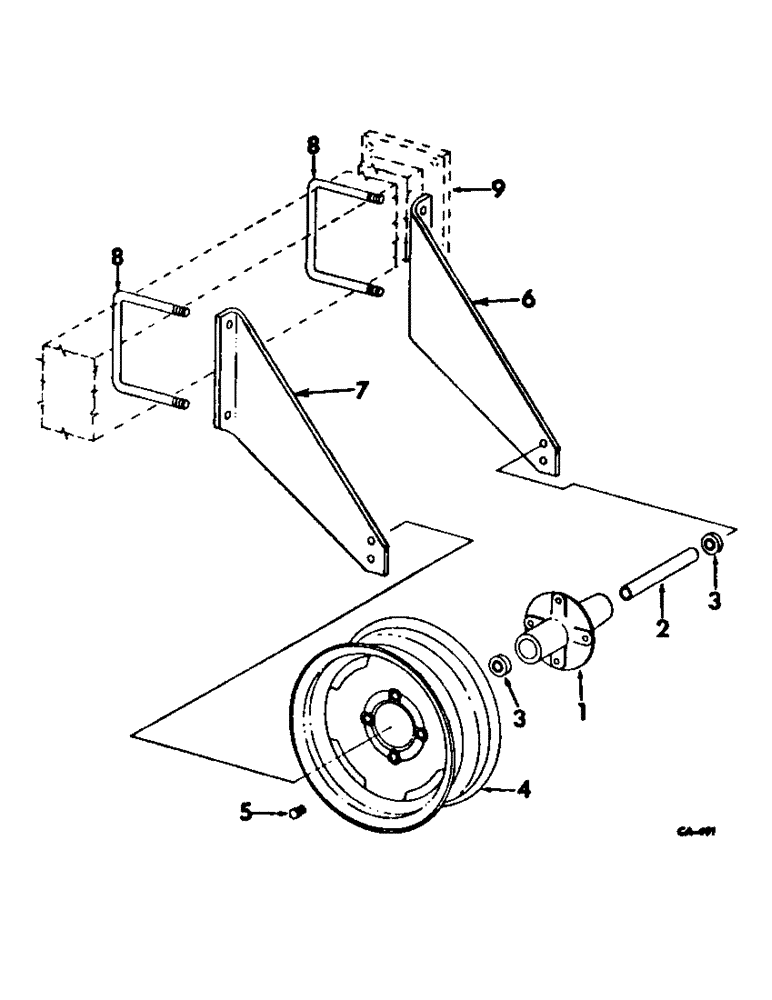

Запчасти Case IH 146 (AR-06) - TOOL BAR CARRYING WHEELS, FOR 6 AND 8 ROW CULTIVATOR

1

465418R2

HUB

wheel

2шт.

2

465423R1

PIPE

SPACER, pipe

2шт.

3

611050R91

BALL BEARING,0.638" ID x 1.5748" OD x 0.72"

ball

4шт.

4

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in., or

2шт.

4

455169R92

WHEEL

ASSY, 15 in.

2шт.

5

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

1/2-NF x 1-1/2 type 5

8шт.

453770R1

WHEEL NUT

1/2-20 wheel hub std

8шт.

6

542308R1

ARM

wheel LH

2шт.

7

542309R1

ARM

wheel RH

2шт.

18065R1

BOLT,Hex, 5/8"-11 x 12", G2

5/8 x 12 znd hex-hd mach

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.

8

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

wheel arm, 5 x 7 frames

4шт.

8

1250813C1

U-BOLT

wheel arm, 7 x 7 frames

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

8шт.

9

TUBE ASSY, refer to frame unit

1шт.
