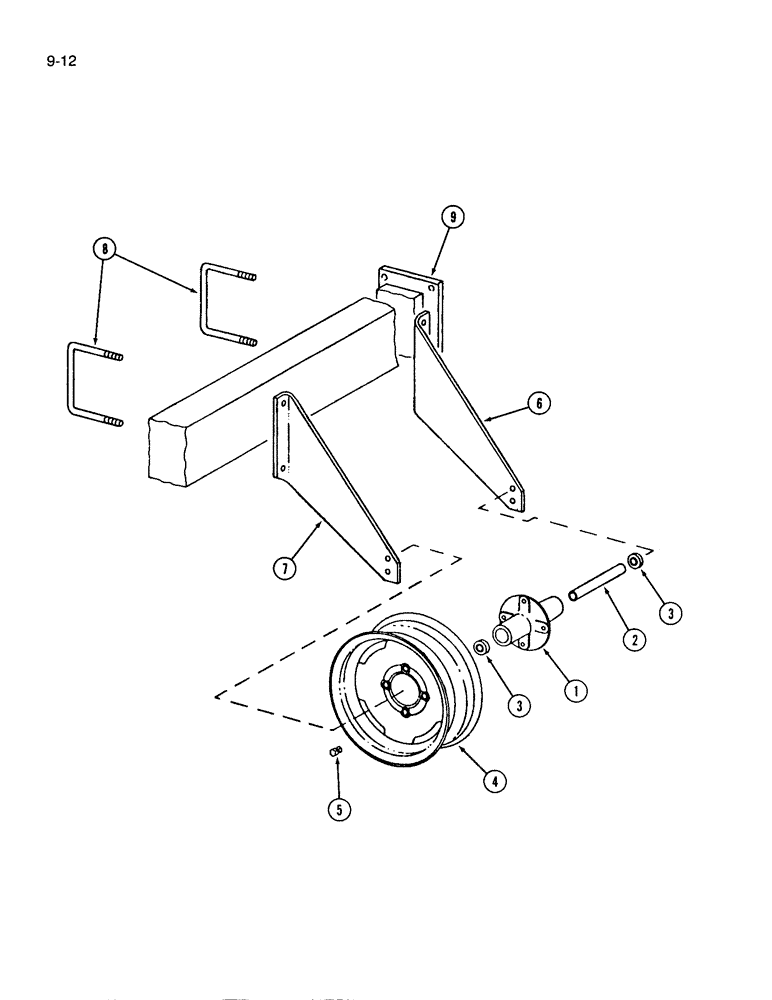

Запчасти Case IH 146 (9-12) - TOOL BAR CARRYING WHEELS, FOR 6 AND 8 ROW CULTIVATORS

1

465418R2

HUB

- wheel

2шт.

2

465423R1

PIPE

SPACER - pipe

2шт.

3

611050R91

BALL BEARING,0.638" ID x 1.5748" OD x 0.72"

- ball

4шт.

4

T25852

RIM

WHEEL - 14 inch (Replaces 463036R1)

2шт.

4

455169R92

WHEEL

- 15 inch

2шт.

5

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

- hex, 1/2 x 1-1/2 inch

8шт.

453770R1

WHEEL NUT

- wheel hub

8шт.

6

542308R1

ARM

- wheel, left

2шт.

7

542309R1

ARM

- wheel, right

2шт.

24-10192

BOLT,Hex, 5/8" - 11 x 12", Gr 2

- hex, 5/8 x 12 inch

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

8

1250812C1

U-BOLT,5/8" - 11 x 182.40mm W x 160.50mm L

- mounting (4 and 6 row cultivators)

4шт.

8

1250813C1

U-BOLT

- mounting (8 row cultivators)

4шт.

425-1010

NUT,5/8"-11, G5

8шт.

9

REF

INSTRUCTION

FRAME ASSEMBLY - main (See Page 9-3)

1шт.
