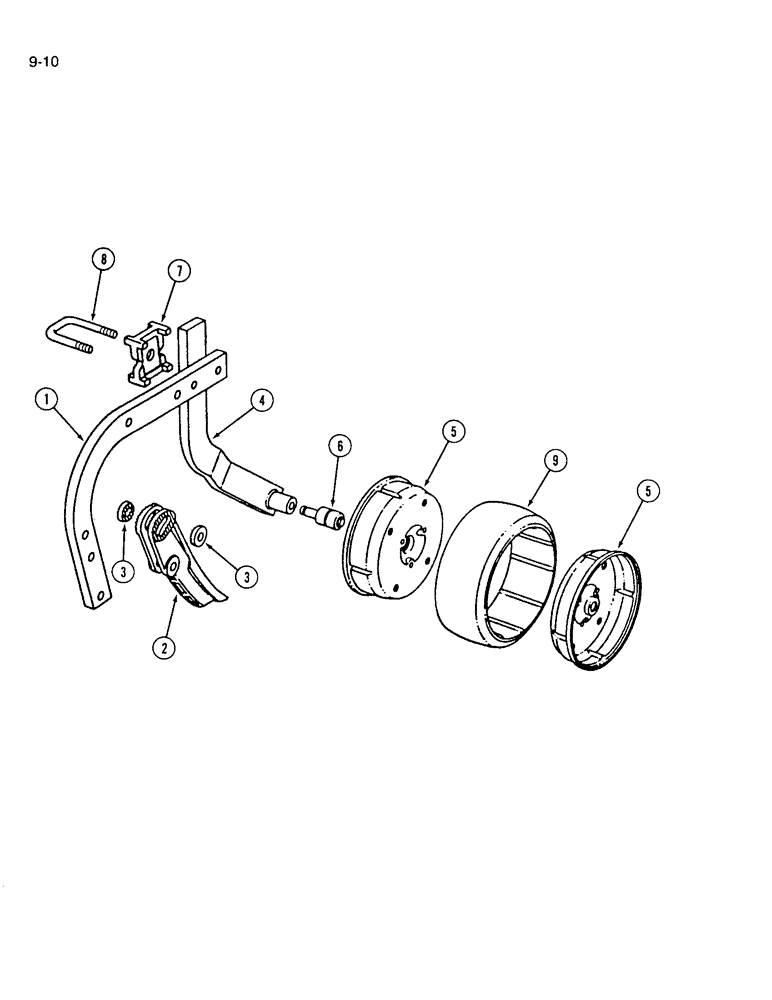

Запчасти Case IH 146 (9-10) - BEAM AND SHANK WITH GAUGE WHEELS

1

487237R1

BEAM

- short

1шт.

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 x 3 inch

1шт.

413-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

- hex, 3/4 x 3-1/4 inch

1шт.

522473R1

WASHER

- 49/64 x 1-3/4 x 3/32 inch

2шт.

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

425-1012

NUT,3/4"-10, G5

2шт.

2

487239R1

LEVER

SHANK - tool

1шт.

411-1048

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3", Gr 2

BOLT - round head square neck, 5/8 x 3 inch

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 1/16 x 1-1/2 x 3/32 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

3

523011R1

WASHER

- serrated

2шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 x 3-3/4 inch

1шт.

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

4

487240R2

ARM

ASSEMBLY - gauge wheel

1шт.

483-3386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - headless hex socket, 3/8 x 3/8 inch

1шт.

5

526768R1

WHEEL

RIM - gauge wheel

2шт.

Part of gauge wheel assembly P/N 1279445C91

1шт.

424-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

- hex, 5/16 x 3/4 inch

7шт.

Part of gauge wheel assembly P/N 1279445C91

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch

7шт.

Part of gauge wheel assembly P/N 1279445C91

1шт.

6

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING - gauge wheel, ball

1шт.

Part of gauge wheel assembly P/N 1279445C91

1шт.

7

487242R3

BLOCK

- clamp

1шт.

8

522572R2

BOLT,U, 1/2" - 13 x 3 3/16"

U-BOLT - arm

1шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

516492R1

TYRE/TIRE

TIRE - semi-pneumatic, 4 x 12 inch

1шт.

Part of gauge wheel assembly P/N 1279445C91

1шт.

1279445C91

WHEEL ASSY.

WHEEL ASSEMBLY - gauge, Includes: Ref. 5, 424-512, 938017R91, 6 and 9

1шт.
